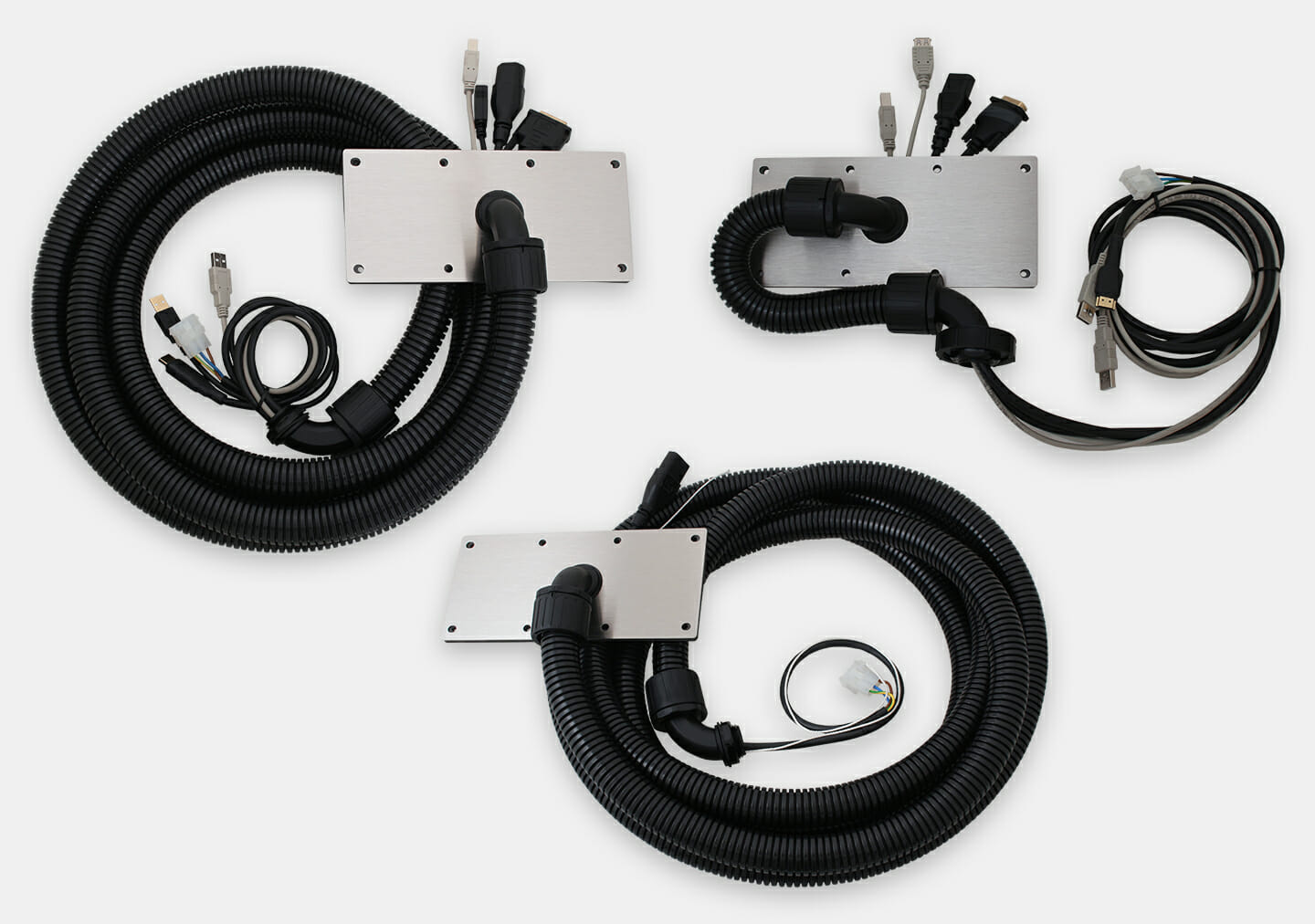

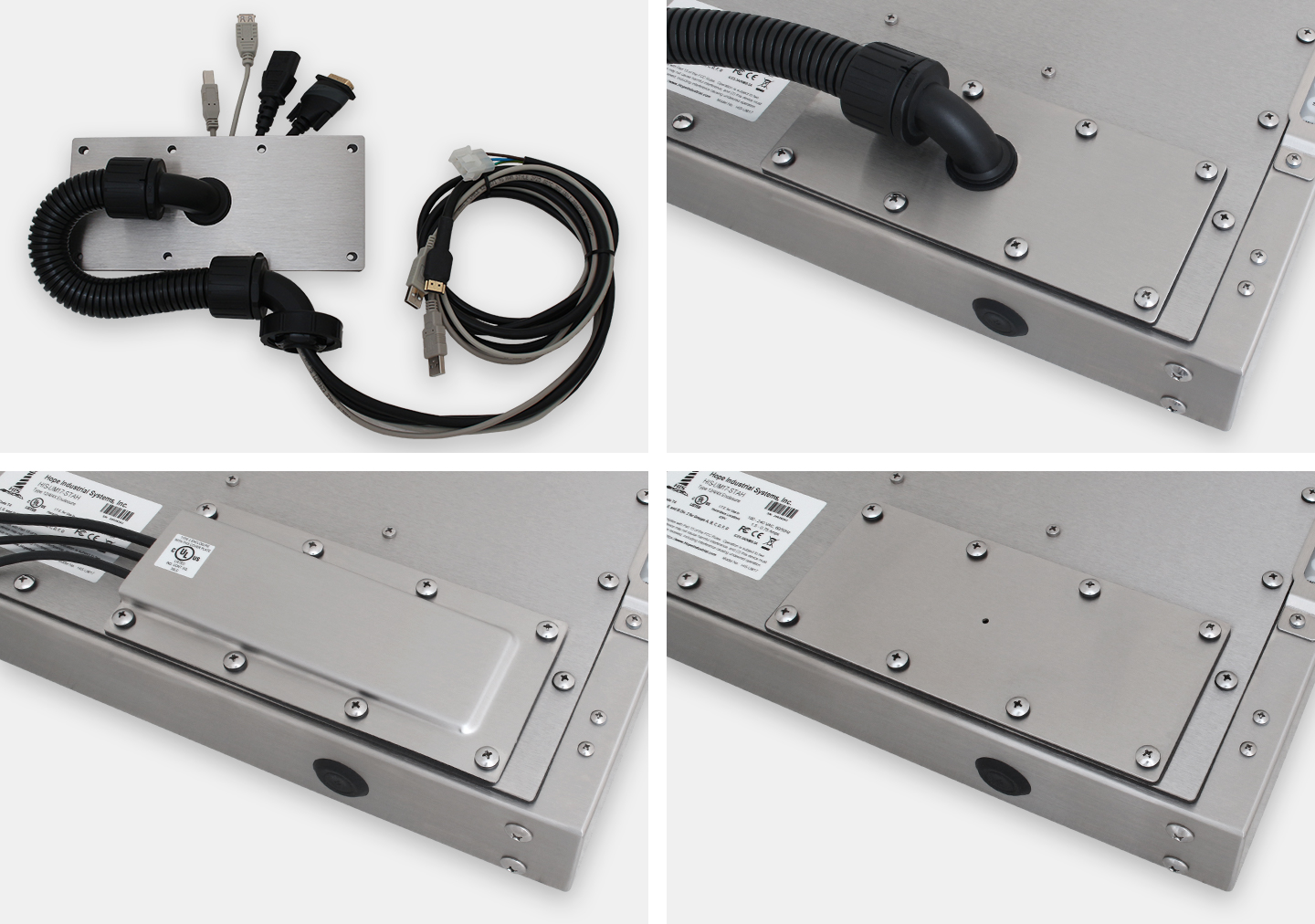

Conduit Cable Exit Assemblies

  • Conduit, Cover Plate, and USB/Power/Video Cable Options
    • Application – for use when display will be connected directly to a computer
    • NEMA Rating
      • Stainless Steel Models – sealed to NEMA 4/4X, IP65/IP66 standards for harsh, industrial environments; NEMA 4/4X, IP69/IP69K options available for 19.5 and 23.8 monitors
      • Black Carbon Steel Models – sealed to NEMA 4, IP65/IP66 standards for harsh, industrial environments
    • Cables Included – video (analog VGA, digital HDMI to DVI, or digital DisplayPort), mains power, and dual-USB cables
    • Conduit/Cable Length Combinations –
      • 1.2 m (4′) conduit with 1.8 m (6′) or 4.6 m (15′) cables
      • 4.0 m (13.2′) conduit with 4.6 m (15′) cables
      • Yoke-length conduit with 1.8 m (6′), 4.6 m (15′), or 7.6 m (25′) cables
    • Minimum Bend Radius – 50 mm
  • Conduit, Cover Plate, and Power Cable and Wire Pull Line Options
    • Application – for use with Hope KVM Extenders or 3rd-party cable options
    • NEMA Rating
      • Stainless Steel Models – sealed to NEMA 4/4X, IP65/IP66 standards for harsh, industrial environments
      • Black Carbon Steel Models – sealed to NEMA 4, IP65/IP66 standards for harsh, industrial environments
    • Cables Included – mains power and wire pull line (for pulling other cables through conduit)
    • Conduit/Cable Length Combinations –
      • 1.2 m (4′) conduit 1.8 m (6′) or 4.6 m (15′) cables
      • 4.0 m (13.2′) conduit with 4.6 m (15′) cables
      • Yoke-length conduit with 1.8 m (6′), 4.6 m (15′), or 7.6 m (25′) cables
    • Minimum Bend Radius – 50 mm

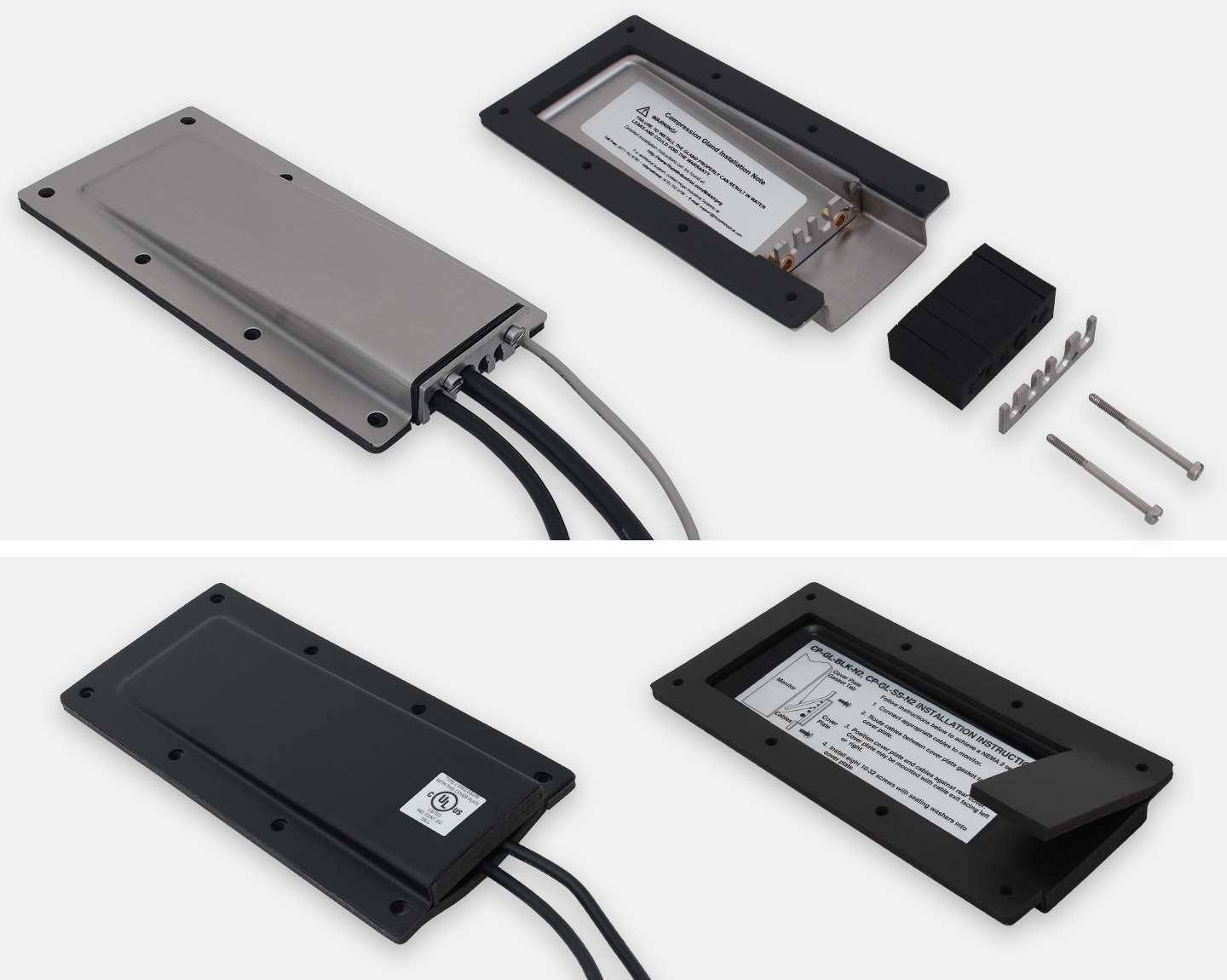

Compression Gland Cable Exit Plates

  • NEMA 4/4X, IP65/IP66 Compression Gland
    • Application – creates wash-down rated seal while allowing user to add, remove, or reposition cables in the field
    • NEMA Rating
      • Stainless Steel Models – NEMA 4/4X, IP65/IP66 rated (3rd-party certified)
      • Black Carbon Steel Models – NEMA 4, IP65/IP66 rated (3rd-party certified)
    • Cable Seal Method – cables exit through flexible silicone rubber (EPDM 30A durometer) seal, which is compressed using a sealing plate with two compression screws

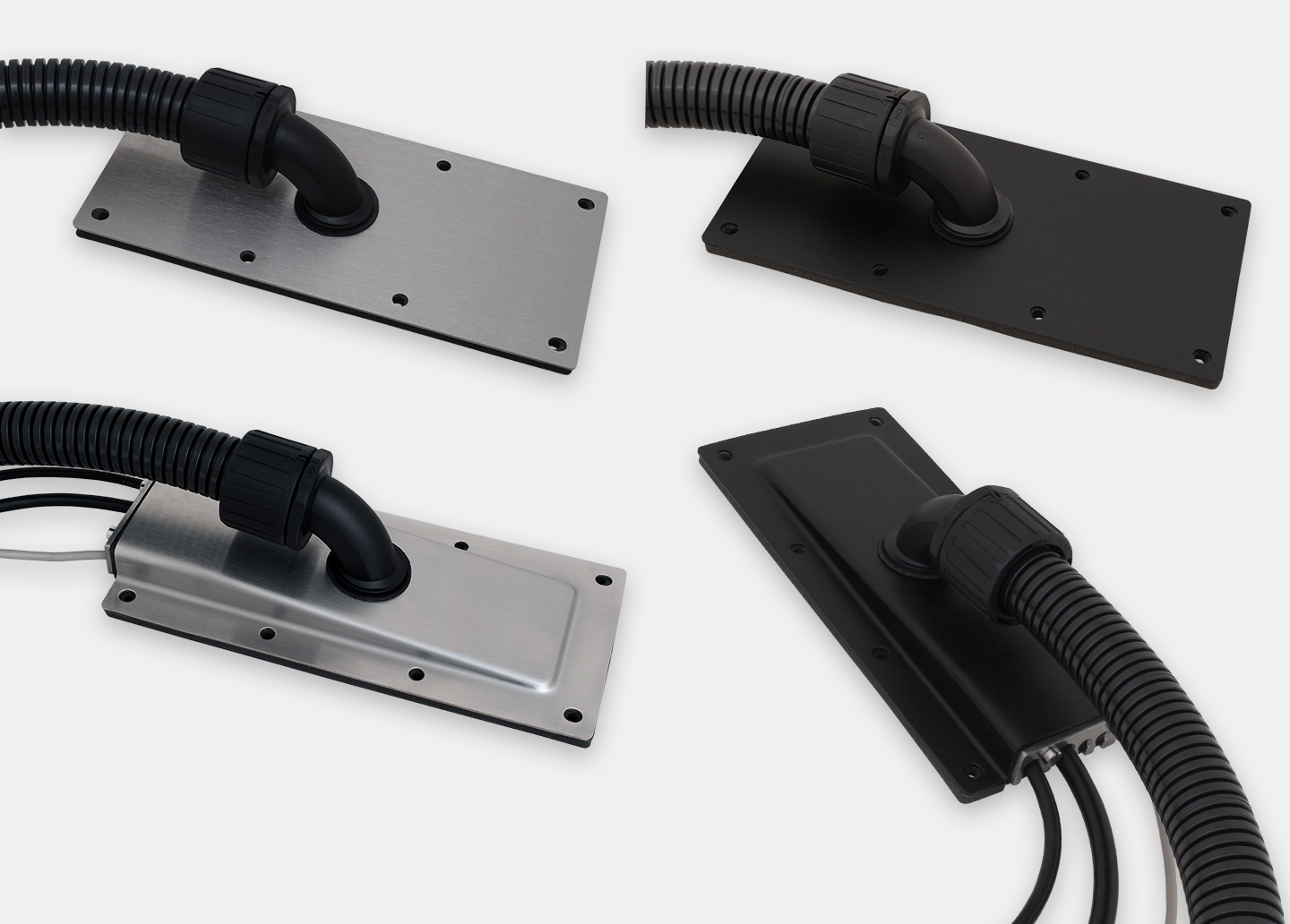

  • NEMA 4/4X, IP65/IP66 Compression Gland with Conduit Elbow
    • Application – provides both conduit cable exit and compression glands in a single plate; typically for use with a local keyboard, scanner or other device (using compression gland) with all cables exiting via conduit
    • NEMA Rating
      • Stainless Steel Models – NEMA 4/4X, IP65/IP66
      • Black Carbon Steel Models – NEMA 4, IP65/IP66
    • Cable Seal Method – cables exit through flexible silicone rubber (EPDM 30A durometer), along with conduit elbow
  • NEMA 2, IP22 Compression Gland
    • Application – provides simple cable exit for displays in dry, dusty environments
    • NEMA Rating – NEMA 2, IP22
    • Cable Seal Method – cables pass through a compressed sandwich of Poron foam

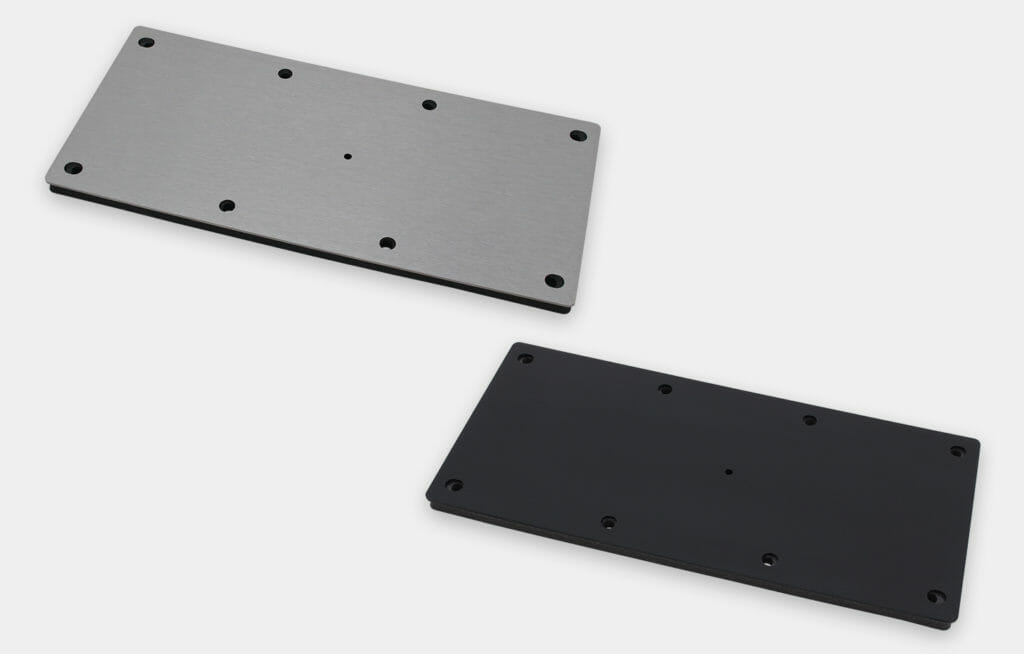

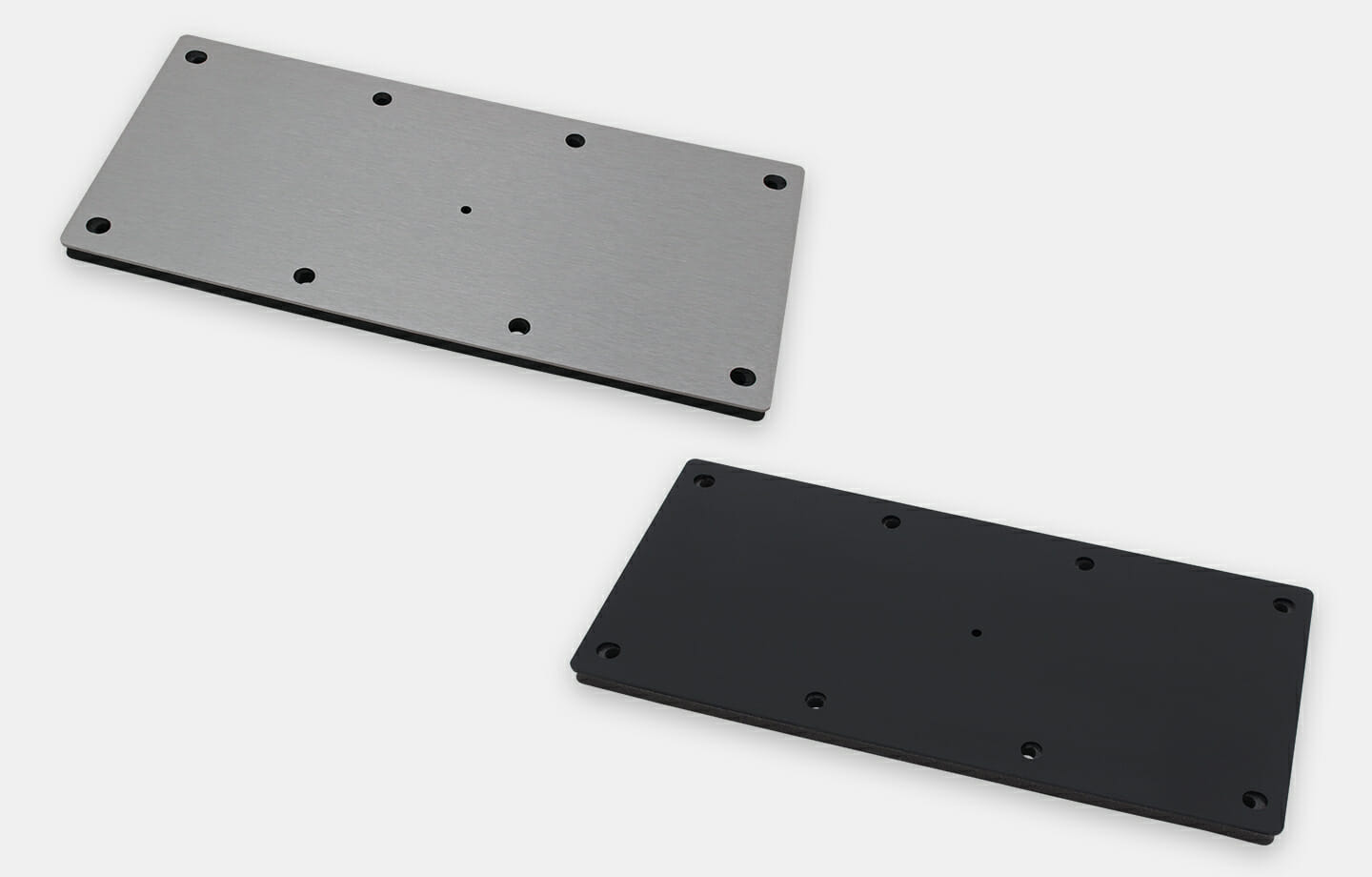

Blank Exit Plates with Pilot Hole

  • Application – allows use of customer-provided cable exit gland or conduit fitting
  • NEMA Rating
    • Stainless Steel Models – NEMA 4/4X, IP65/IP66 plate-to-seal rating
    • Black Carbon Steel Models – NEMA 4, IP65/IP66 plate-to-seal rating
    • Note that final rating depends on customer-provided gland or fitting
  • Pilot Hole – pre-drilled guide hole for customer modification
Conduit Cable Exit Assemblies - Conduit, Cover Plate, and USB/Power/Video Cable Options
Conduit LengthCable CombinationMaterialIP RatingPart NumberPrice
1.2 m (4') Conduit1.8 m (6') Power, Dual USB, VGA VideoStainless SteelIP69/IP69KCP-CON-S9-UA2A-118$325£260€320320 €CP-CON-S9-UA2A-118
IP65/IP66CP-CON-S4-UA2A-118$260£210€255255 €CP-CON-S4-UA2A-118
Black Powder-Coated SteelIP65/IP66CP-CON-BL-UA2A-118$260£210€255255 €CP-CON-BL-UA2A-118
1.8 m (6') Power, Dual USB, HDMI to DVI VideoStainless SteelIP69/IP69KCP-CON-S9-UD1A-118$280£225€275275 €CP-CON-S9-UD1A-118
IP65/IP66CP-CON-S4-UD1A-118$215£175€210210 €CP-CON-S4-UD1A-118
Black Powder-Coated SteelIP65/IP66CP-CON-BL-UD1A-118$215£175€210210 €CP-CON-BL-UD1A-118
1.8 m (6') Power, Dual USB, DisplayPort VideoStainless SteelIP69/IP69KCP-CON-S9-UD2A-118$270£215€265265 €CP-CON-S9-UD2A-118
IP65/IP66CP-CON-S4-UD2A-118$205£165€200200 €CP-CON-S4-UD2A-118
Black Powder-Coated SteelIP65/IP66CP-CON-BL-UD2A-118$205£165€200200 €CP-CON-BL-UD2A-118
4.6 m (15') Power, Dual USB, VGA VideoStainless SteelIP69/IP69KCP-CON-S9-UA2A-146$365£290€355355 €CP-CON-S9-UA2A-146
IP65/IP66CP-CON-S4-UA2A-146$300£240€295295 €CP-CON-S4-UA2A-146
Black Powder-Coated SteelIP65/IP66CP-CON-BL-UA2A-146$300£240€295295 €CP-CON-BL-UA2A-146
4.6 m (15') Power, Dual USB, HDMI to DVI VideoStainless SteelIP69/IP69KCP-CON-S9-UD1A-146$335£270€330330 €CP-CON-S9-UD1A-146
IP65/IP66CP-CON-S4-UD1A-146$270£215€265265 €CP-CON-S4-UD1A-146
Black Powder-Coated SteelIP65/IP66CP-CON-BL-UD1A-146$270£215€265265 €CP-CON-BL-UD1A-146
4.6 m (15') Power, Dual USB, DisplayPort VideoStainless SteelIP69/IP69KCP-CON-S9-UD2A-146$325£260€320320 €CP-CON-S9-UD2A-146
IP65/IP66CP-CON-S4-UD2A-146$260£210€255255 €CP-CON-S4-UD2A-146
Black Powder-Coated SteelIP65/IP66CP-CON-BL-UD2A-146$260£210€255255 €CP-CON-BL-UD2A-146
4.0 m (13.2') Conduit4.6 m (15') Power, Dual USB, VGA VideoStainless SteelIP69/IP69KCP-CON-S9-UA2A-446$460£370€450450 €CP-CON-S9-UA2A-446
IP65/IP66CP-CON-S4-UA2A-446$400£320€390390 €CP-CON-S4-UA2A-446
Black Powder-Coated SteelIP65/IP66CP-CON-BL-UA2A-446$400£320€390390 €CP-CON-BL-UA2A-446
4.6 m (15') Power, Dual USB, HDMI to DVI VideoStainless SteelIP69/IP69KCP-CON-S9-UD1A-446$435£350€425425 €CP-CON-S9-UD1A-446
IP65/IP66CP-CON-S4-UD1A-446$370£295€360360 €CP-CON-S4-UD1A-446
Black Powder-Coated SteelIP65/IP66CP-CON-BL-UD1A-446$370£295€360360 €CP-CON-BL-UD1A-446
4.6 m (15') Power, Dual USB, DisplayPort VideoStainless SteelIP69/IP69KCP-CON-S9-UD2A-446$420£335€410410 €CP-CON-S9-UD2A-446
IP65/IP66CP-CON-S4-UD2A-446$355£285€345345 €CP-CON-S4-UD2A-446
Black Powder-Coated SteelIP65/IP66CP-CON-BL-UD2A-446$355£285€345345 €CP-CON-BL-UD2A-446
Conduit for Yoke1.8 m (6') Power, Dual USB, VGA VideoStainless SteelIP69/IP69KCP-CON-S9-UA2A-P18$325£260€320320 €CP-CON-S9-UA2A-P18
IP65/IP66CP-CON-S4-UA2A-P18$260£210€255255 €CP-CON-S4-UA2A-P18
Black Powder-Coated SteelIP65/IP66CP-CON-BL-UA2A-P18$260£210€255255 €CP-CON-BL-UA2A-P18
1.8 m (6') Power, Dual USB, HDMI to DVI VideoStainless SteelIP69/IP69KCP-CON-S9-UD1A-P18$280£225€275275 €CP-CON-S9-UD1A-P18
IP65/IP66CP-CON-S4-UD1A-P18$215£175€210210 €CP-CON-S4-UD1A-P18
Black Powder-Coated SteelIP65/IP66CP-CON-BL-UD1A-P18$215£175€210210 €CP-CON-BL-UD1A-P18
1.8 m (6') Power, Dual USB, DisplayPort VideoStainless SteelIP69/IP69KCP-CON-S9-UD2A-P18$270£215€265265 €CP-CON-S9-UD2A-P18
IP65/IP66CP-CON-S4-UD2A-P18$205£165€200200 €CP-CON-S4-UD2A-P18
Black Powder-Coated SteelIP65/IP66CP-CON-BL-UD2A-P18$205£165€200200 €CP-CON-BL-UD2A-P18
4.6 m (15') Power, Dual USB, VGA VideoStainless SteelIP69/IP69KCP-CON-S9-UA2A-P46$365£290€355355 €CP-CON-S9-UA2A-P46
IP65/IP66CP-CON-S4-UA2A-P46$300£240€295295 €CP-CON-S4-UA2A-P46
Black Powder-Coated SteelIP65/IP66CP-CON-BL-UA2A-P46$300£240€295295 €CP-CON-BL-UA2A-P46
4.6 m (15') Power, Dual USB, HDMI to DVI VideoStainless SteelIP69/IP69KCP-CON-S9-UD1A-P46$335£270€330330 €CP-CON-S9-UD1A-P46
IP65/IP66CP-CON-S4-UD1A-P46$270£215€265265 €CP-CON-S4-UD1A-P46
Black Powder-Coated SteelIP65/IP66CP-CON-BL-UD1A-P46$270£215€265265 €CP-CON-BL-UD1A-P46
4.6 m (15') Power, Dual USB, DisplayPort VideoStainless SteelIP69/IP69KCP-CON-S9-UD2A-P46$325£260€320320 €CP-CON-S9-UD2A-P46
IP65/IP66CP-CON-S4-UD2A-P46$260£210€255255 €CP-CON-S4-UD2A-P46
Black Powder-Coated SteelIP65/IP66CP-CON-BL-UD2A-P46$260£210€255255 €CP-CON-BL-UD2A-P46
7.6 m (25') Power and VGA Video, 4.6 m (15') Dual USBStainless SteelIP69/IP69KCP-CON-S9-UA2A-P76$460£370€450450 €CP-CON-S9-UA2A-P76
IP65/IP66CP-CON-S4-UA2A-P76$395£315€385385 €CP-CON-S4-UA2A-P76
Black Powder-Coated SteelIP65/IP66CP-CON-BL-UA2A-P76$395£315€385385 €CP-CON-BL-UA2A-P76
Conduit Cable Exit Assemblies - Conduit, Cover Plate, and Power Cable and Wire Pull Line Options
Conduit LengthPower Cable LengthMaterialPart NumberPrice
1.2 m (4') Conduit1.8 m (6') PowerStainless SteelCP-CON-S4-CYYA-118$165£135€165165 €CP-CON-S4-CYYA-118
Black Powder-Coated SteelCP-CON-BL-CYYA-118$165£135€165165 €CP-CON-BL-CYYA-118
4.6 m (15') PowerStainless SteelCP-CON-S4-CYYA-146$210£170€205205 €CP-CON-S4-CYYA-146
Black Powder-Coated SteelCP-CON-BL-CYYA-146$210£170€205205 €CP-CON-BL-CYYA-146
4.0 m (13.2') Conduit4.6 m (15') PowerStainless SteelCP-CON-S4-CYYA-446$305£245€300300 €CP-CON-S4-CYYA-446
Black Powder-Coated SteelCP-CON-BL-CYYA-446$305£245€300300 €CP-CON-BL-CYYA-446
Conduit for Yoke1.8 m (6') PowerStainless SteelCP-CON-S4-CYYA-P18$165£135€165165 €CP-CON-S4-CYYA-P18
Black Powder-Coated SteelCP-CON-BL-CYYA-P18$165£135€165165 €CP-CON-BL-CYYA-P18
4.6 m (15') PowerStainless SteelCP-CON-S4-CYYA-P46$210£170€205205 €CP-CON-S4-CYYA-P46
Black Powder-Coated SteelCP-CON-BL-CYYA-P46$210£170€205205 €CP-CON-BL-CYYA-P46
7.6 m (25') PowerStainless SteelCP-CON-S4-CYYA-P76$225£180€220220 €CP-CON-S4-CYYA-P76
Black Powder-Coated SteelCP-CON-BL-CYYA-P76$225£180€220220 €CP-CON-BL-CYYA-P76
Compression Gland Cable Exit Plates
ModelCable CompatibilityMaterialPart NumberDescription
NEMA 4/4X, IP65/IP66 Compression GlandUS (NEMA 5-15) Mains Power CablesStainless SteelCP-RG1-SS-N4X$165£135€165165 €CP-RG1-SS-N4X
Black Powder-Coated SteelCP-RG1-BLK-N4$155£125€155155 €CP-RG1-BLK-N4
UK (BS1363) and EU (CEE 7/7) Mains Power CablesStainless SteelCP-RG2-SS-N4X$170£135€170170 €CP-RG2-SS-N4X
Black Powder-Coated SteelCP-RG2-BLK-N4$160£130€160160 €CP-RG2-BLK-N4
All Power Cables; for use with 60m KVM ExtendersStainless SteelCP-RG3-SS-N4X$160£130€160160 €CP-RG3-SS-N4X
Black Powder-Coated SteelCP-RG3-BLK-N4$175£140€170170 €CP-RG3-BLK-N4
NEMA 4/4X, IP65/IP66 Compression Gland with Conduit ElbowUS (NEMA 5-15) Mains Power CablesStainless SteelCP-RG1-CON-SS-N4X$265£215€260260 €CP-RG1-CON-SS-N4X
Black Powder-Coated SteelCP-RG1-CON-BLK-N4$270£215€265265 €CP-RG1-CON-BLK-N4
UK (BS1363) and EU (CEE 7/7) Mains Power CablesStainless SteelCP-RG2-CON-SS-N4X$265£215€260260 €CP-RG2-CON-SS-N4X
Black Powder-Coated SteelCP-RG2-CON-BLK-N4$270£215€265265 €CP-RG2-CON-BLK-N4
NEMA 2, IP22 Compression Glandn/aStainless SteelCP-GL-SS-N2$105£85€105105 €CP-GL-SS-N2
n/aBlack Powder-Coated SteelCP-GL-BLK-N2$80£65€8080 €CP-GL-BLK-N2
Blank Exit Plates with Pilot Hole
MaterialPart NumberPrice
Stainless SteelCP-BLNK-SS-N4X$60£48€6060 €CP-BLNK-SS-N4X
Black Powder-Coated SteelCP-BLNK-BLK-N4$50£40€4949 €CP-BLNK-BLK-N4
