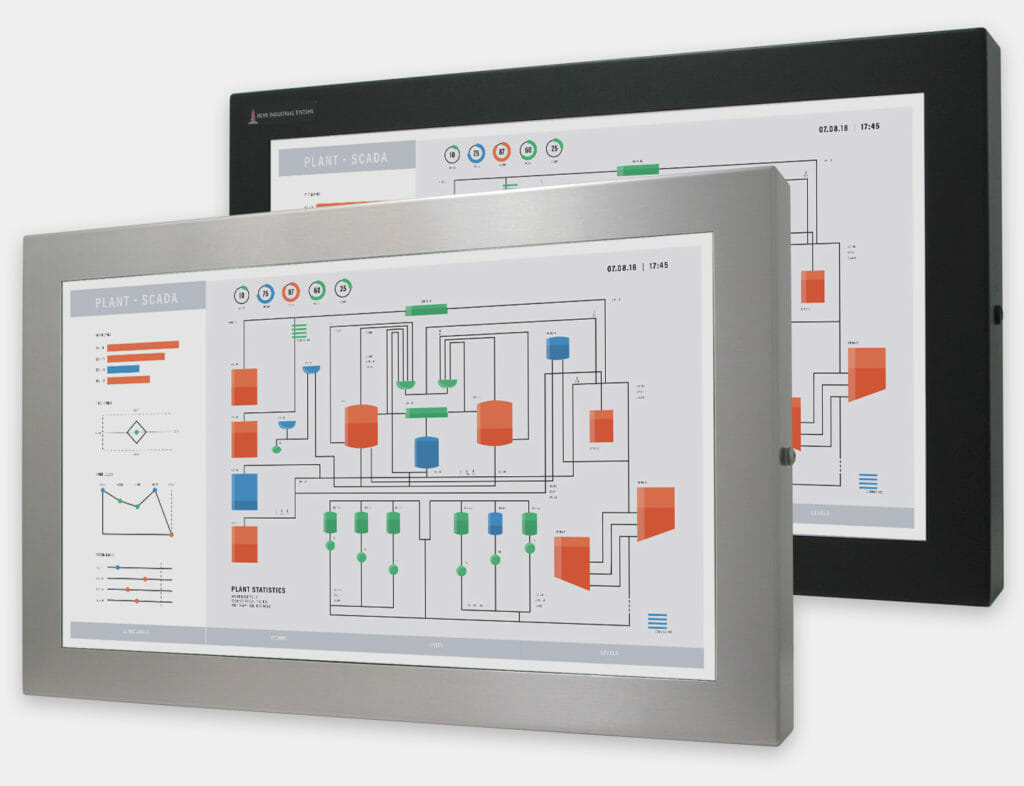

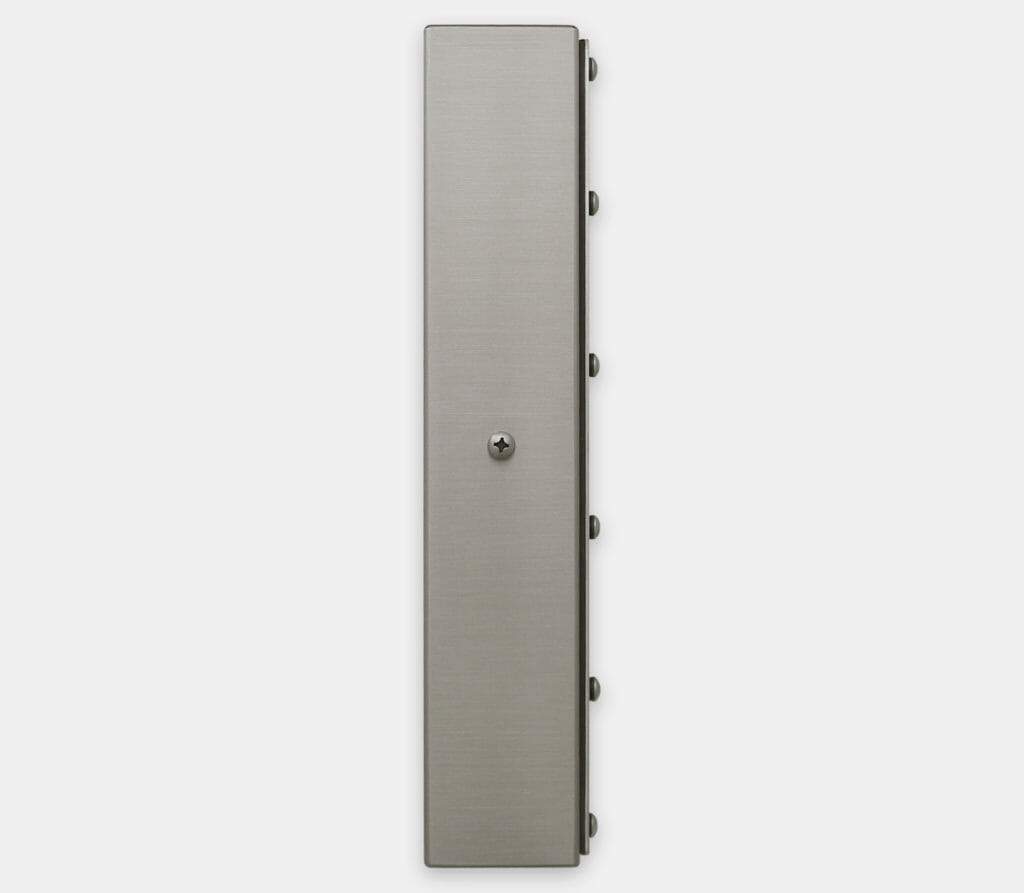

Our Universal Mount Monitors form the core of the modular Hope Industrial Workstation System. Using the included VESA or yoke mount points, the fully enclosed display can be mounted in a limitless range of configurations depending on the individual needs of each user’s application. Cable connections are protected inside the monitor cavity, with cables exiting through a variety of sealed, wash-down rated cable exit glands.

Optional sealed industrial keyboards can be added to create a complete HMI solution, and fully sealed PC or thin client enclosures allow most standard computer hardware to be mounted directly to the workstation. Industrial KVM extender options allow placement of the PC up to 300 m (1,000′) away using shielded CATx cable.

You can design your own workstation using our 3D Configuration and Quoting Tool. Our Workstation Configuration Guide also explains all of the options in more detail.

These complete workstations can be assembled in the field or fully assembled and tested at our factory when ordered with our optional Workstation Assembly Service.

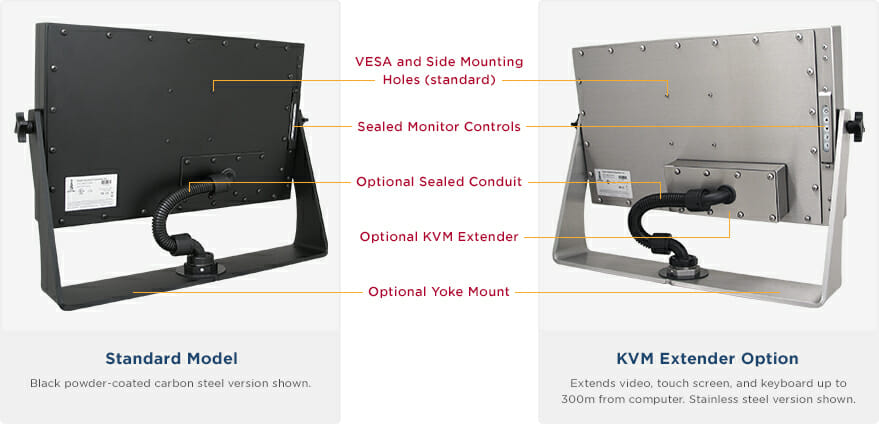

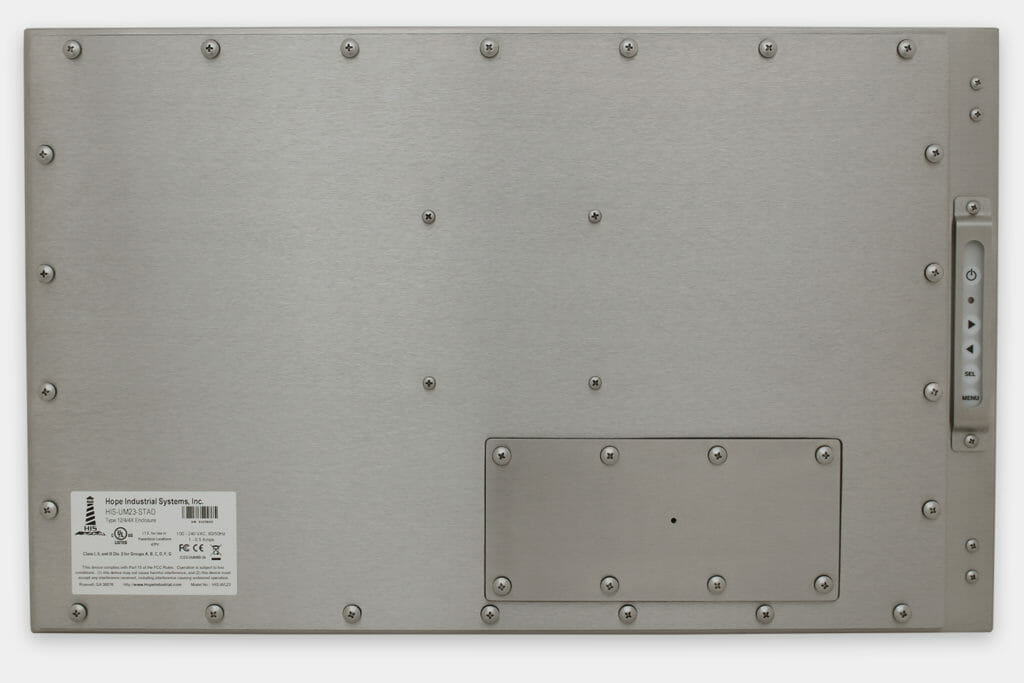

Rear Views

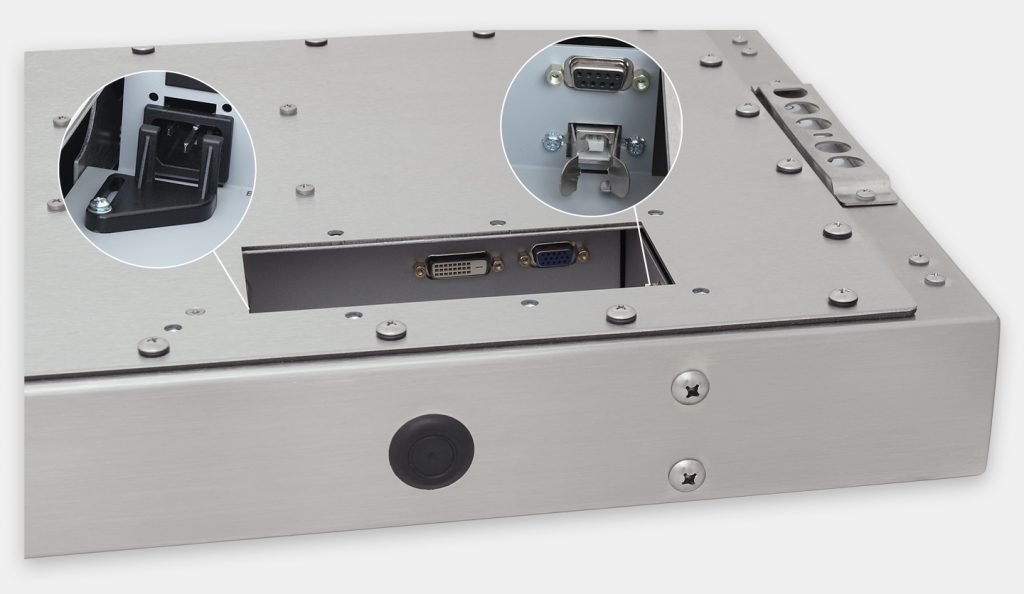

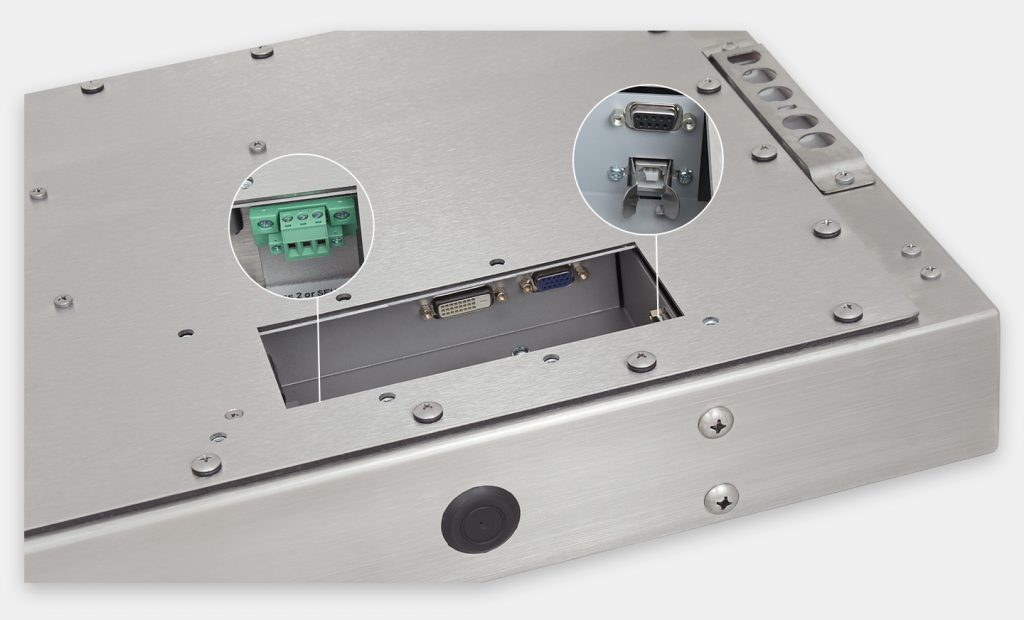

Cable Exit Options

Visit our Cable Exit Plate page for detailed specifications and available options.

Display

  • Size – 23.8″ diagonal (widescreen)
  • Native Resolution – HD 1080p (1920 x 1080, 16:9 aspect ratio)
  • Brightness (white) – 350 nits (cd/m2) max
  • Contrast Ratio – 1000:1
  • Backlight (typical) – LED; 40,000 hour brightness half-life
  • Type – Thin-film Transistor (TFT) Active Matrix Liquid Crystal
  • Image Size (W x H) – 527.04 mm x 296.46 mm (20.75″ x 11.67″)
  • Plug and Play – DDC1/2Bi compatible
  • Minimum Resolution – VGA (640 x 480)
  • Pixel Pitch – 0.2745 mm x 0.2745 mm
  • Number of Colors – 16.7 million
  • Viewing Angle (Hori/Vert), typical – 178° / 178°

Window Options

  • Single-Touch Resistive Touch Screen
    • Technology – 5-wire single-touch resistive sensor. Pressure sensitive for use with any stylus or glove. Polyester cover sheet with anti-glare acrylic hard-coat. Single-touch gestures supported.
    • Interface – USB or RS-232 interface to computer (both connections included)
    • If the touch screen will be exposed to sunlight, whether direct or indirect, please choose our glass-armored resistive or PCAP touch solutions that will not lose clarity over time as a result of UV rays; call for details.
  • Multi-Touch PCAP Touch Screen
    • Technology – high-clarity projected capacitive sensor. Can be used with thin gloves or capacitive stylus. Chemically-strengthened glass with anti-glare finish. 10-point multi-touch gestures supported.
    • Interface – USB interface to computer
  • Glass Window (non-touch) – 2.8 mm to 3.0 mm glass window with 90% gloss anti-glare surface finish. Chemically-strengthened for higher impact and scratch resistance. Passes ball-drop test, 500 g at 2.0 m (6.6′).
  • Food Protection Window (non-touch) – glass with polyester cover sheet and anti-glare acrylic hard-coat

Video

  • Input Connectors – DVI-I; DisplayPort
  • Compatible Inputs Using Optional Adapter (call for details)
    • HDMI (via HDMI to DVI adapter); part number: ADAP-DVID-HDMIF
    • Mini DisplayPort (via Mini DisplayPort to DisplayPort adapter); part number: ADAP-DPM-MDPF
    • VGA (via VGA to DVI adapter); part number: CVGA-DVI
    • BNC (via 5-wire BNC to HD-15 adapter); part number: C20A
  • Input Signal Formats
    • RGB Analog video, 0.7/1.0 Vp-p, 75 Ohms; Compatible sync modes: Separate H/V sync, Composite sync, Sync on Green
    • DVI
    • DisplayPort 1.1
    • NTSC/PAL composite input available; call for details
  • Horizontal Scan – 24-82 kHz
  • Vertical Scan – 50-75 Hz
  • Common Supported Video Standards
    • HD 1080p – 1920 x 1080 @ 60 Hz (native)
    • 1680 x 1050 @ 60 Hz
    • 1600 x 1200 @ 60 Hz
    • 1440 x 900 @ 60, 75 Hz
    • 1280 x 1024 @ 60, 75 Hz
    • 1024 x 768 @ 60, 70, 72, 75 Hz
    • 800 x 600 @ 56, 60, 75 Hz
    • 720 x 480 @ 60 Hz
    • 640 x 480 @ 50, 75 Hz
    • See user manual for a full list of resolution and timing compatibility
  • Response Time (typical) – 14 ms

Electrical

  • Power Input
    • AC Power Input – 100 to 240 VAC, 0.6/0.3 A, 60/50 Hz
    • DC Power Input – 10.8 to 26.4 VDC, 2.3 to 0.9 A, Class 2 or SELV/LPS
  • Power Consumption (typical) – 27 W
  • Power Consumption (standby mode) – < 2 W

Environmental

  • Enclosure Rating – NEMA 2, NEMA 4, or NEMA 4X when fitted with required cable exit plate; IP65/IP66/IP69/IP69K, IP65/IP66, or IP22 (depending on cable exit). More on IP/NEMA ratings.
  • Operating Temperature – 0° to 50°C (32° to 122°F)
  • Storage Temperature – -20° to 60°C (-4° to 140°F)
  • Humidity – 20% to 90% non-condensing
  • Operating Shock – 15 g, 6 msec, half-sine
  • Operating Vibration (sine) – 1.0 g, swept sine 9-500 Hz
  • Transport Vibration (random) – 0.1g² / Hz, 10-200 Hz; 0.03g² / Hz, 200-2000 Hz
  • Altitude – Operating: up to 3.05 km (10,000′); Non-operating: up to 12.19 km (40,000′)

Functional

  • Panel Controls (rear access) – Power, Right, Left, SEL, Menu
  • OSD (On Screen Display) Controls – Contrast, Brightness, Sharpness, Color, Timing, Auto setup, H total, V position, H position, Phase, Inputs, OSD, Info, Reset to factory defaults, Source scan, Advanced Setup

Physical

  • Enclosure Type – self-contained enclosure
  • Enclosure Material – black powder-coated carbon steel or stainless steel enclosure; edge-to-edge window with black edge molding made of 60D durometer urethane eliminates collection of solids by its seamless integration with the front surface of the display
  • VESA Mounting Holes – standard on all models – 100mm square, M4 threads
  • Side Mounting Holes – standard on all models, 1/4″-20 internal thread x 15.9 mm (0.625″) deep
  • Enclosure Dimensions (W x H x D) – 603.3 mm x 383.0 mm x 69.5 mm (23.75″ x 15.08″ x 2.74″)
  • Net Weight
    • Black Powder-Coated Carbon Steel Models – 11.7 kg (25.8 lbs)
    • Stainless Steel Models – 13.52 kg (29.8 lbs)
  • Shipping Weight
    • Black Powder-Coated Carbon Steel Models – 14.5 kg (32 lbs.)
    • Stainless Steel Models – 14.5 kg (32 lbs.)

Compliances and Certifications

  • Electrical
  • Reliability
  • Environmental
  • Enclosure
  • Hazardous Locations
    • I.T.E. Listed for Class I, Division 2 for Groups A, B, C, and D; Class II, Division 2 for Groups F and G; Class III
    • Temp Code T5 (File No. E334953) per ANSI/ISA-12.12.01-2015 and CAN/CSA C22.2 No. 213-15
    • Note: Hope Industrial Systems provides wiring and conduit that complies with the U.S. National Electric Code but cannot rate wiring or conduit methods for hazardous locations, as these must be locally inspected and approved. The customer must install their hazardous location rated monitor in accordance with the applicable electrical codes for their location.

Cable Exit Options

  • Compression Gland – cables exit through compressed polyurethane foam or EPDM rubber and may be repositioned by the user. NEMA 2, 12/4, or 12/4/4X (IP22 or IP65/IP66) options available.
  • 3/4″ Conduit – cables exit through flexible conduit. Up to 7.0 m (22′) conduit length. Sealed to NEMA 12/4 or 12/4/4X (IP65/IP66/IP69/IP69K) standards.
  • Compression Gland with Conduit – cables exit through flexible conduit. Up to 7.0 m (22′) conduit length. Cables for nearby peripherals (mouse, keyboard, scanner) can exit through compressed EPDM rubber and may be repositioned by the user. Sealed to NEMA 12/4 or 12/4/4X (IP65/IP66) standards.
  • Cover Plate with Pilot Hole – NEMA 12/4 or 12/4/4X (IP65/IP66) rated cover plate with pilot hole for use with customer-supplied cable exit gland.

Optional Workstation Components

23.8" Universal Mount Monitors - pricing below is for monitor only. Base configuration pricing above includes monitor, basic cover plate, and 1.8m cables.
Enclosure MaterialWindow OptionPart NumberPrice
Stainless SteelSingle-Touch Resistive Touch ScreenHIS-UM23.8-STVA$1,950£1,550€1,8951.895 €HIS-UM23.8-STVA
Multi-Touch PCAP Touch ScreenHIS-UM23.8-SPVA$1,950£1,550€1,8951.895 €HIS-UM23.8-SPVA
Tempered Glass Window (non-touch)HIS-UM23.8-SGVA$1,810£1,440€1,7601.760 €HIS-UM23.8-SGVA
Food Protection Window (non-touch)HIS-UM23.8-SHVA$1,910£1,520€1,8551.855 €HIS-UM23.8-SHVA
Black Powder-Coated Carbon SteelSingle-Touch Resistive Touch ScreenHIS-UM23.8-CTVA$1,625£1,290€1,5801.580 €HIS-UM23.8-CTVA
Multi-Touch PCAP Touch ScreenHIS-UM23.8-CPVA$1,625£1,290€1,5801.580 €HIS-UM23.8-CPVA
Tempered Glass Window (non-touch)HIS-UM23.8-CGVA$1,485£1,180€1,4451.445 €HIS-UM23.8-CGVA
Food Protection Window (non-touch)HIS-UM23.8-CHVA$1,585£1,260€1,5401.540 €HIS-UM23.8-CHVA
