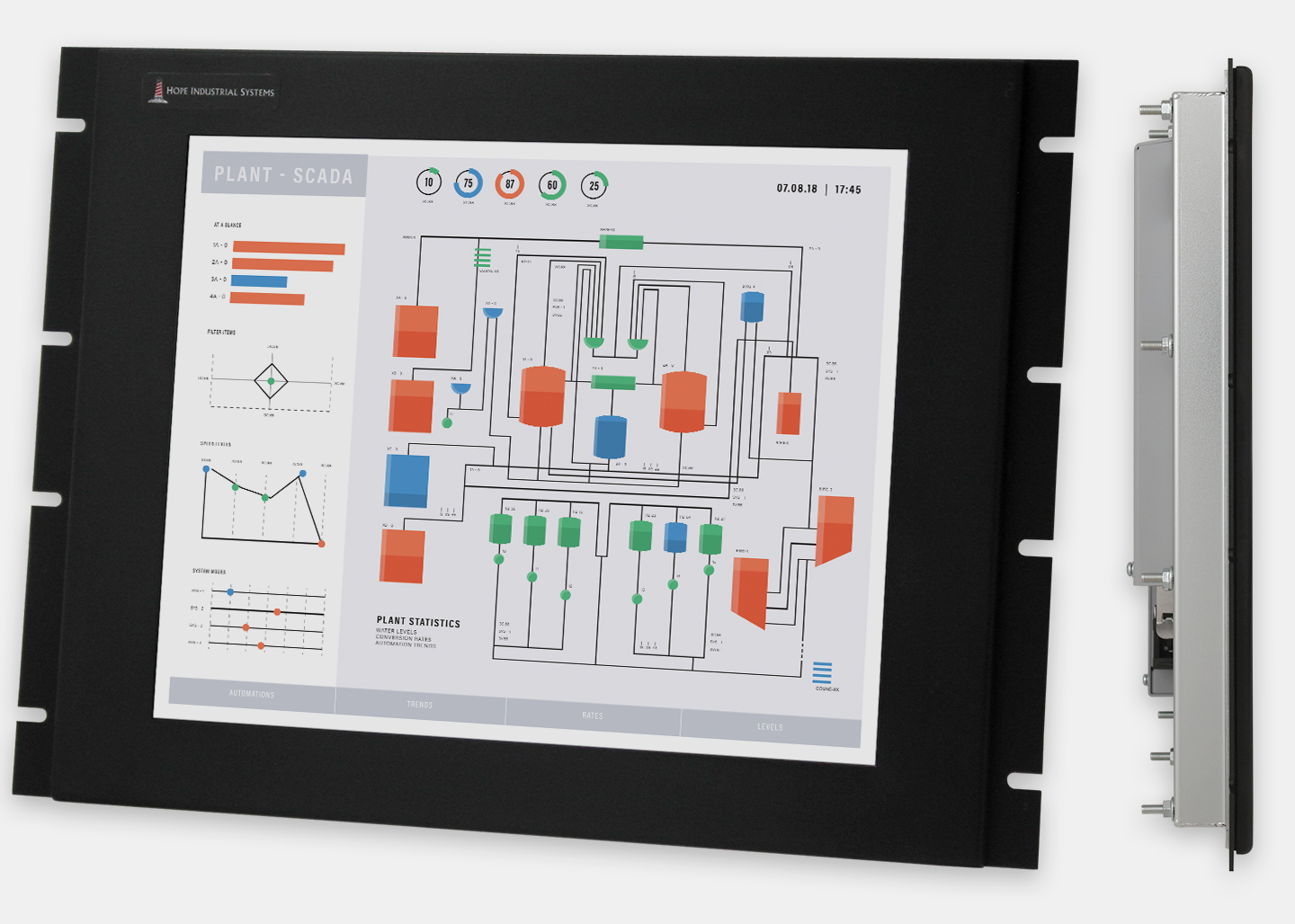

17" Rack Mount Industrial Monitors and IP20 Rugged Touch Screens, front and side views

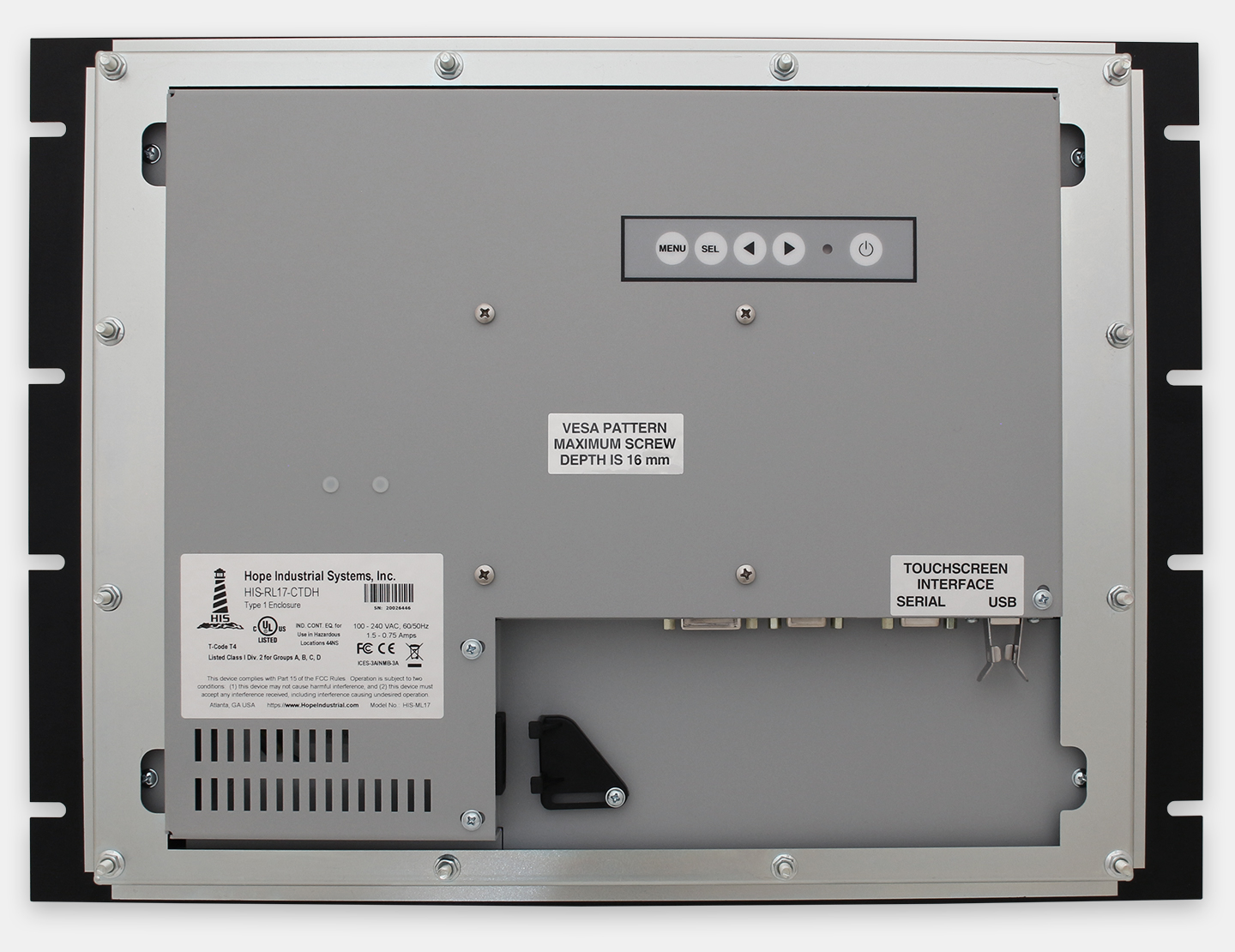

17" Rack Mount Industrial Monitors and IP20 Rugged Touch Screens, rear view

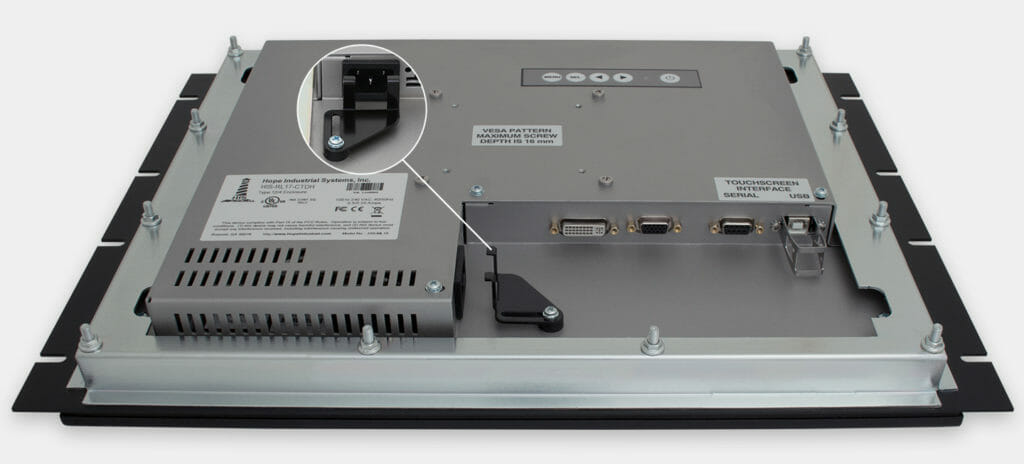

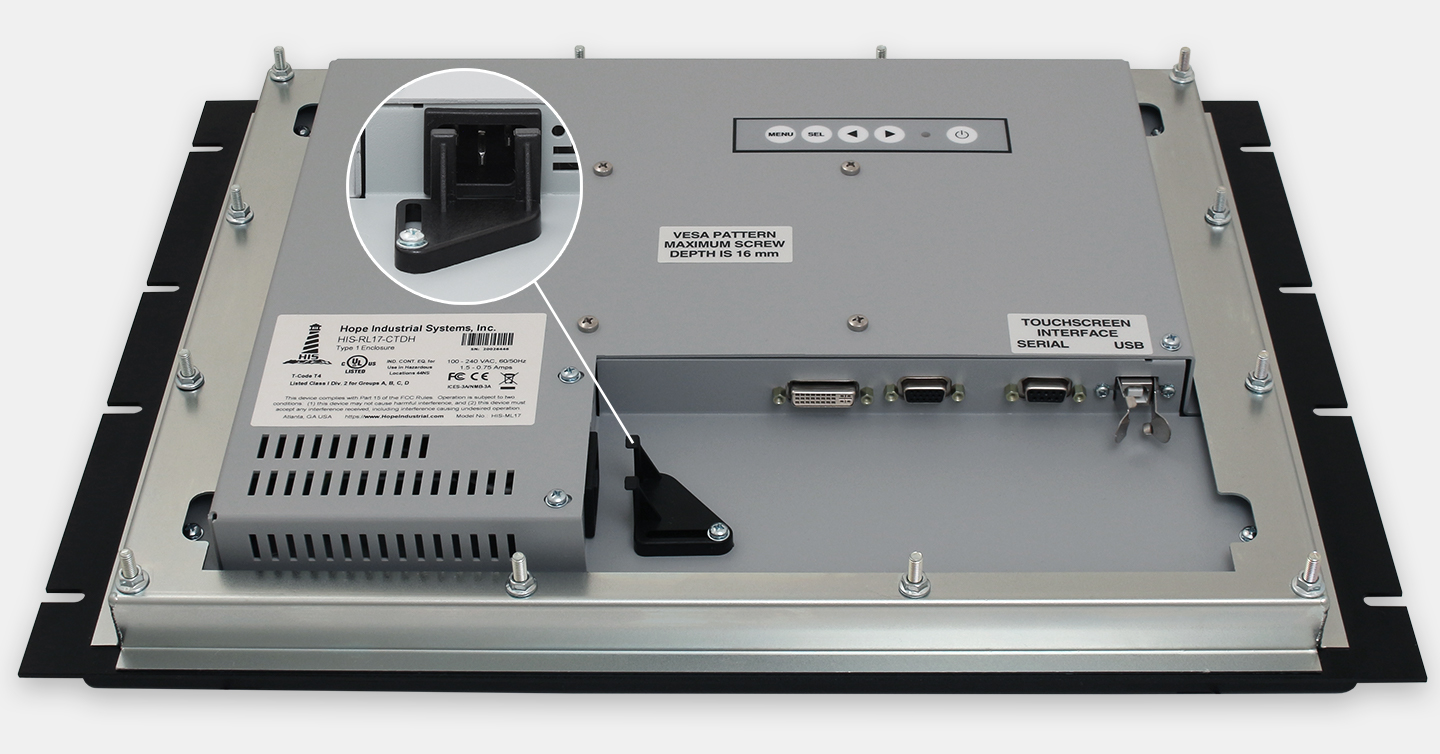

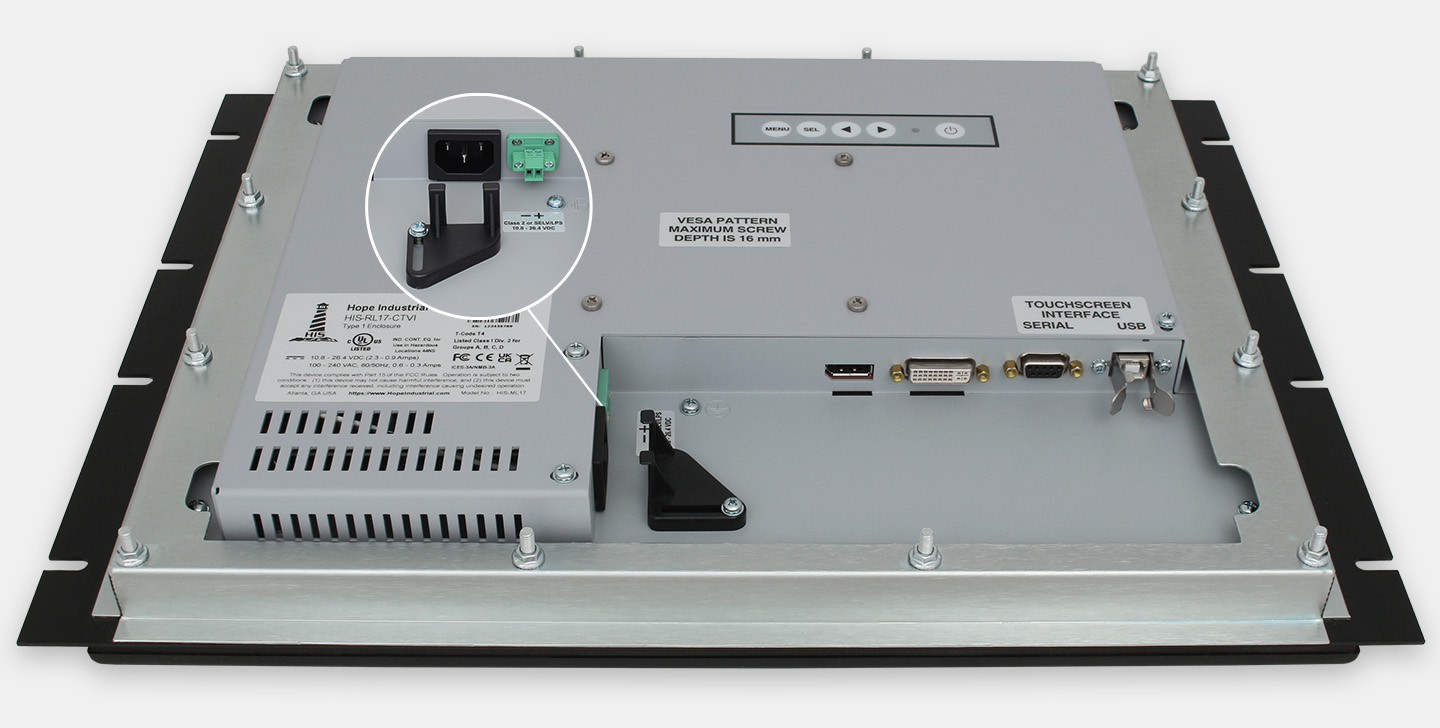

17" Rack Mount Industrial Monitors and IP20 Rugged Touch Screens, cable exit view

Data Sheets

Support Items

Drivers

Display

  • Size – 17.0″ diagonal
  • Native Resolution – SXGA (1280 x 1024, 5:4 aspect ratio)
  • Brightness (white) – 250 nits (cd/m2) max
  • Contrast Ratio – 1000:1
  • Backlight (typical) – LED; 50,000 hour brightness half-life
  • Type – Thin-film Transistor (TFT) Active Matrix Liquid Crystal
  • Image Size (W x H) – 338 mm x 270 mm
  • Plug and Play – DDC1/2Bi compatible
  • Minimum Resolution – VGA (640 x 480)
  • Pixel Pitch – 0.264 mm x 0.264 mm
  • Number of Colours – 16.7 million
  • Viewing Angle (Hori/Vert), typical – 178° / 178°

Window Options

  • Single-Touch Resistive Touch Screen
    • Technology – 5-wire single-touch resistive sensor. Pressure sensitive for use with any stylus or glove. Polyester cover sheet with anti-glare acrylic hard-coat. Single-touch gestures supported.
    • Interface – USB or RS-232 interface to computer (both connections are included on touch screen monitors)
    • If the touch screen will be exposed to sunlight, whether direct or indirect, please choose our glass-armoured resistive or PCAP touch solutions that will not lose clarity over time as a result of UV rays; call for details.
  • Fully Tempered Glass Window (non-touch) – 2.8 mm to 3.0 mm glass window with 90% gloss anti-glare surface finish. Fully tempered to ASTM C1048 standards for higher impact and scratch resistance. Passes ball-drop test, 500 g at 1.2 m.
  • Optional Acrylic Window (non-touch) – acrylic glazing provides a scratch-resistant and shatter-resistant window; anti-reflective coating with 99% reduction of glare; thermal insulating and anti-static; 99% UV blocking

Video

  • Input Connectors – DVI-I; DisplayPort
  • Compatible Inputs Using Optional Adapter (call for details)
    • HDMI (via DVI to HDMI adapter); part number: ADAP-DVIDM-HDMIF
    • Mini DisplayPort (via Mini DisplayPort to DisplayPort adapter); part number: ADAP-DPM-MDPF
    • VGA (via VGA to DVI adapter); part number: CVGA-DVI
    • BNC (via 5-wire BNC to HD-15 adapter); part number: C20A
  • Input Signal Formats
    • RGB Analogue video, 0.7/1.0 Vp-p, 75 Ohms; Compatible sync modes: Separate H/V sync, Composite sync, Sync on Green
    • DVI
    • DisplayPort 1.2
    • NTSC/PAL composite input available; call for details
  • Horizontal Scan – 31-80 kHz
  • Vertical Scan – 49-76 Hz
  • Common Supported Video Standards
    • SXGA – 1280 x 1024 @ 60 (native), 75 Hz
    • 1024 x 768 @ 60, 70, 75 Hz
    • 848 x 480 @ 60 Hz
    • 800 x 600 @ 56, 60, 72, 75 Hz
    • 800 x 480 @ 60 Hz
    • 720 x 480 @ 60 Hz
    • 720 x 400 @ 70 Hz
    • 640 x 480 @ 60, 75 Hz
    • 640 x 400 @ 70 Hz
    • See user manual for a full list of resolution and timing compatibility
  • Response Time (typical) – 14 ms

Electrical

  • Power Input
    • AC Power Input – 100 to 240 VAC, 0.6/0.3 A, 60/50 Hz with C-14 socket

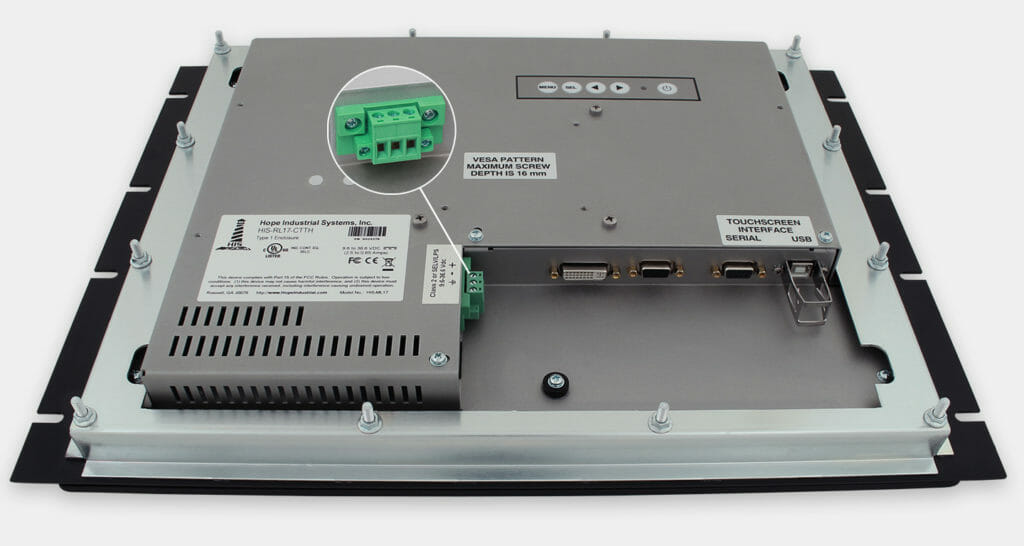

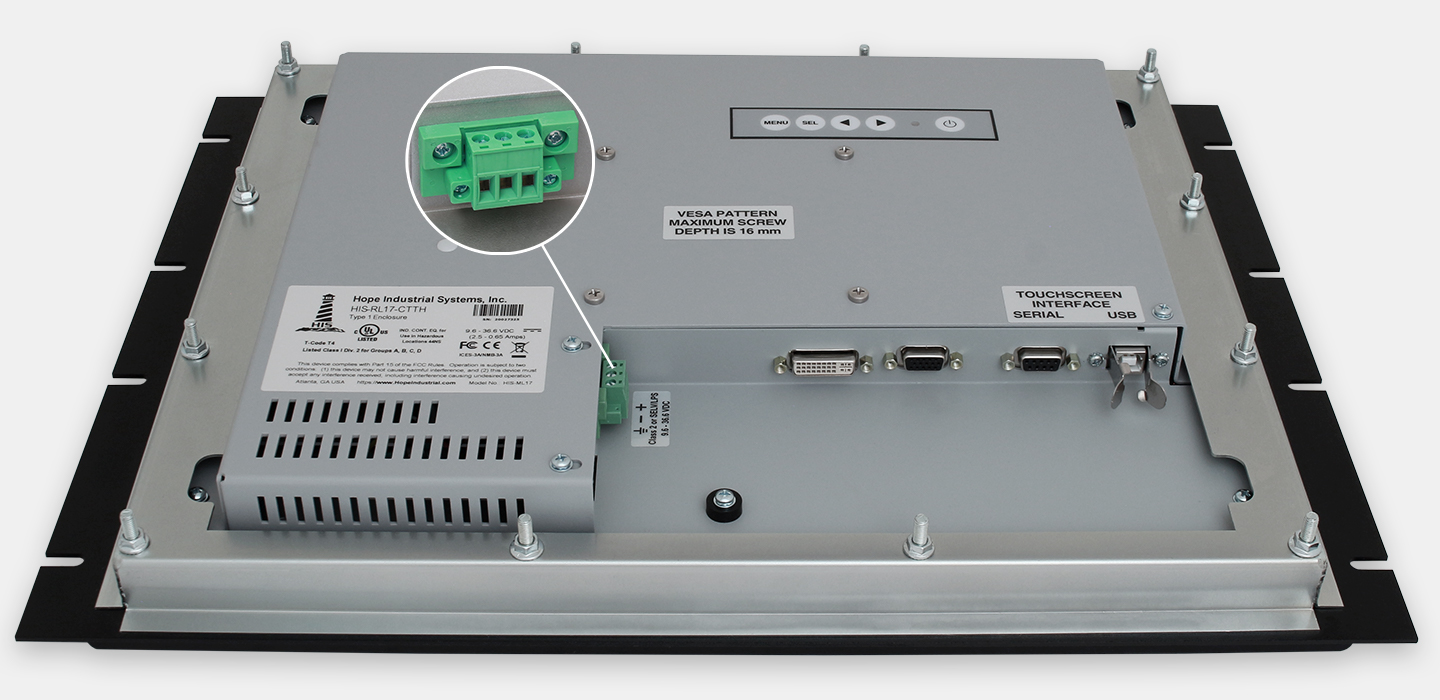

    • DC Power Input – 10.8 to 26.4 VDC, 2.3 to 0.9 A with terminal blocks on removable connector, Class 2 or SELV/LPS
  • Power Consumption (typical) – 12 W
  • Power Consumption (standby mode) – < 2 W

Environmental

  • Panel Rating (with proper installation) – IP20; NEMA/UL Type 1. More on IP / NEMA ratings.
  • Operating Temperature – 0° to 50°C
  • Storage Temperature – -20° to 60°C
  • Humidity – 20% to 90% non-condensing
  • Operating Shock – 15 g, 6 msec, half-sine
  • Operating Vibration (sine) – 1.0 g, swept sine 9-500 Hz
  • Transport Vibration (random) – 0.1g² / Hz, 10-200 Hz; 0.03g² / Hz, 200-2000 Hz
  • Altitude – Operating: up to 3.05 km; Non-operating: up to 12.19 km
  • Environmental Sulphur Gas Protection Option – includes glass-armoured touch screen, vapour-phase corrosion inhibitor, and extensive sealing; call for details. More on Sulphur Gas Protection.

Functional

  • Panel Controls (rear access) – Menu, SEL, Left, Right, Power
  • OSD (On Screen Display) Controls – Backlight, Contrast, Saturation, Sharpness, Color Balance, User Color, Gamma, Aspect Ratio, Over Scan, VGA Settings, Input, Auto Scan, Advanced Setup, Reset to Factory Defaults, OSD, Info

Physical

  • Enclosure Type – rack mount; standard EIA 19″ rack width; 8U height with 4 mounting slots
  • Bezel Material – black powder-coated carbon steel faceplate
  • Maximum Depth Behind Bezel – 45.7 mm
  • Front Bezel Outside Dimensions (W x H x D) – 482.6 mm x 354.8 mm x 3.175 mm
  • Net Weight – 7.26 kg
  • Shipping Weight – 9.07 kg

Compliances and Certifications

17" Industrial Rack Mount Monitors and Touch Screens
Window OptionPart NumberPrice
Single-Touch Resistive Touch ScreenHIS-RL17-CTVI$1,170£855€975975 €HIS-RL17-CTVI
Glass (non-touch)HIS-RL17-CGVI$1,030£755€860860 €HIS-RL17-CGVI
Acrylic (non-touch)HIS-RL17-CAVI$1,045£765€875875 €HIS-RL17-CAVI

Related Products

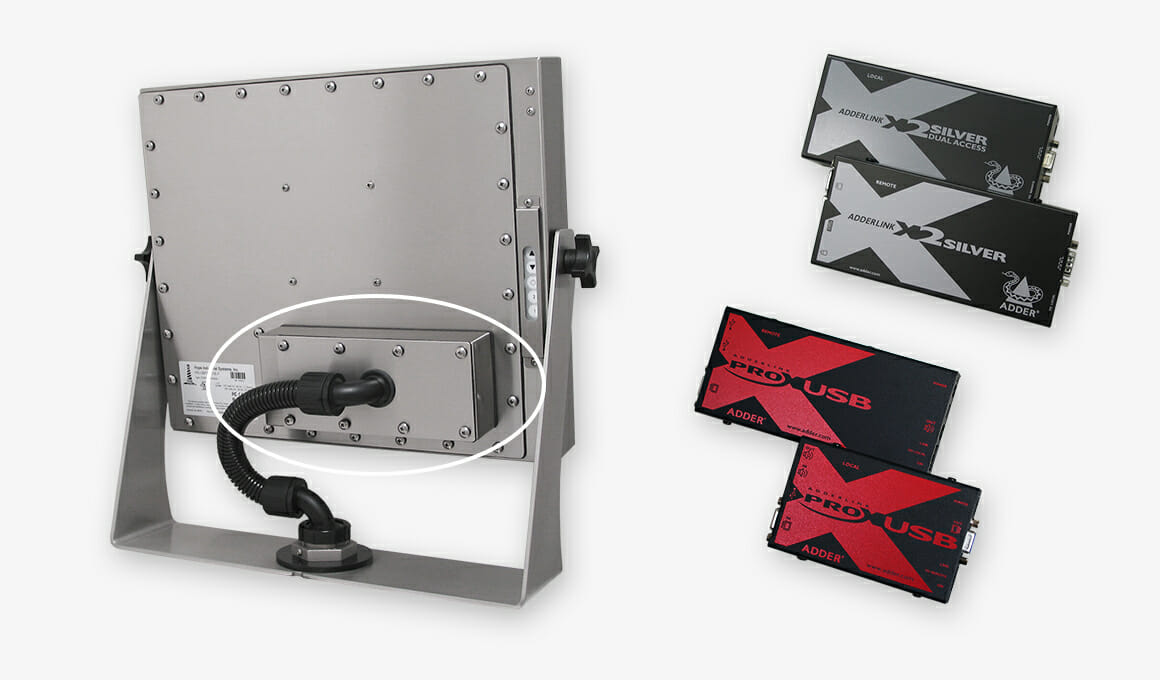

Product - KVM Extenders - _Index

Product - KVM Extenders - _Index

Product - Screen Protectors

Screen Protectors for Industrial Touch Screens

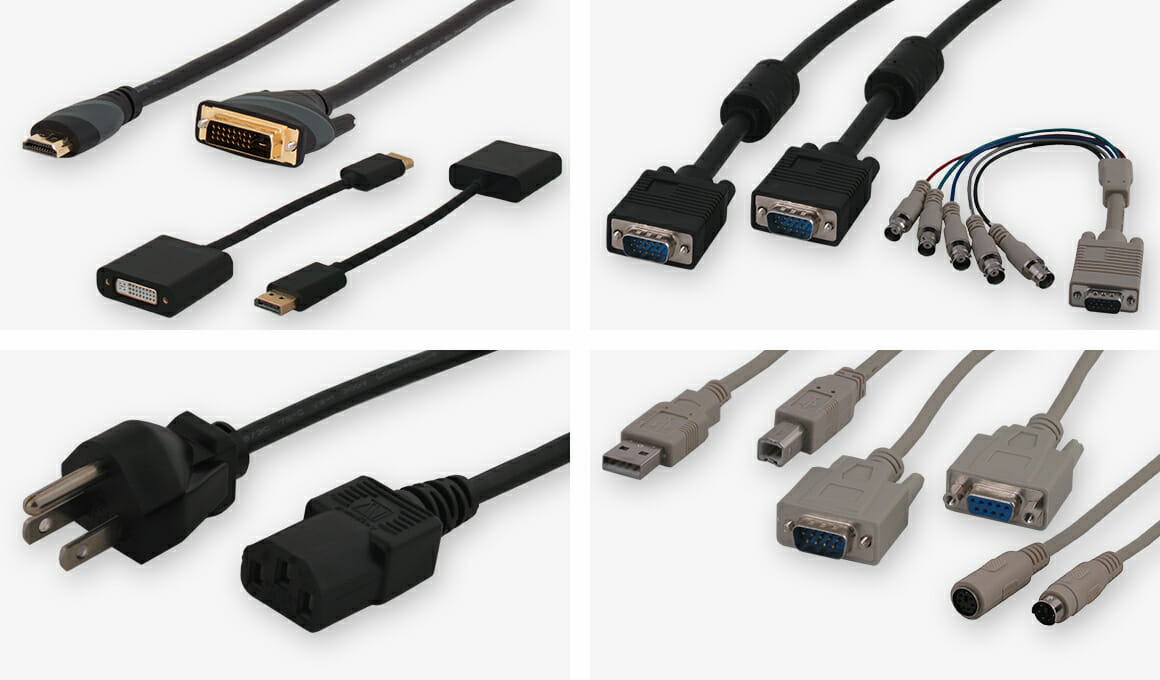

Product - Cables - _Index
