Display

  • Size – 12.1″ diagonal
  • Native Resolution – SVGA (800 x 600, 4:3 aspect ratio)
  • Brightness (white) – 450 nits (cd/m2) max
  • Contrast Ratio – 1500:1
  • Backlight (typical) – LED; 60,000 hour brightness half-life
  • Type – Thin-film Transistor (TFT) Active Matrix Liquid Crystal
  • Image Size (W x H) – 246 mm x 184.5 mm (9.7″ x 7.3″)
  • Plug and Play – DDC1/2Bi compatible
  • Minimum Resolution – VGA (640 x 480)
  • Pixel Pitch – 0.308 mm x 0.308 mm
  • Number of Colors – 16.7 million
  • Viewing Angle (Hori/Vert), typical – 178° / 178°

Window Options

  • Single-Touch Resistive Touch Screen
    • Technology – 5-wire single-touch resistive sensor. Pressure sensitive for use with any stylus or glove. Polyester cover sheet with anti-glare acrylic hard-coat. Single-touch gestures supported.
    • Interface – USB or RS-232 interface to computer (both connections are included on touch screen monitors); USB cable included
    • If the touch screen will be exposed to sunlight, whether direct or indirect, please choose our glass-armored resistive or PCAP touch solutions that will not lose clarity over time as a result of UV rays; call for details.
  • Fully Tempered Glass Window (non-touch) – 2.8 mm to 3.0 mm glass window with 90% gloss anti-glare surface finish. Fully tempered to ASTM C1048 standards for higher impact and scratch resistance. Passes ball-drop test, 500 g at 1.2 m (3.9′).
  • Optional Acrylic Window (non-touch) – acrylic glazing provides a scratch-resistant and shatter-resistant window; anti-reflective coating with 99% reduction of glare; thermal insulating and anti-static; 99% UV blocking

Video

  • Input Connectors – HD-15, DVI-I; standard VGA video cable included
  • Compatible Inputs Using Optional Adapter (call for details)
    • HDMI (via DVI to HDMI adapter); part number: ADAP-DVIDM-HDMIF
    • DisplayPort (via DisplayPort to DVI adapter); part number: ADAP-DPM-DVIIF
    • BNC (via 5-wire BNC to HD-15 adapter); part number: C20A
  • Input Signal Formats
    • RGB Analog video, 0.7 Vp-p, 75 Ohms; Compatible sync modes: Separate H/V sync
    • DVI
    • NTSC/PAL composite input available; call for details
  • Horizontal Scan – 30-60 kHz
  • Vertical Scan – 50-75 Hz
  • Common Supported Video Standards
    • 800 x 600 @ 56, 60 (native), 72, 75 Hz
    • 800 x 480 @ 60 Hz
    • 720 x 480 @ 60 Hz
    • 720 x 400 @ 70 Hz
    • 640 x 480 @ 60, 67, 72, 75 Hz
    • 640 x 400 @ 70 Hz
    • See user manual for a full list of resolution and timing compatibility
  • Response Time (typical) – 12 ms

Electrical

  • Power Input

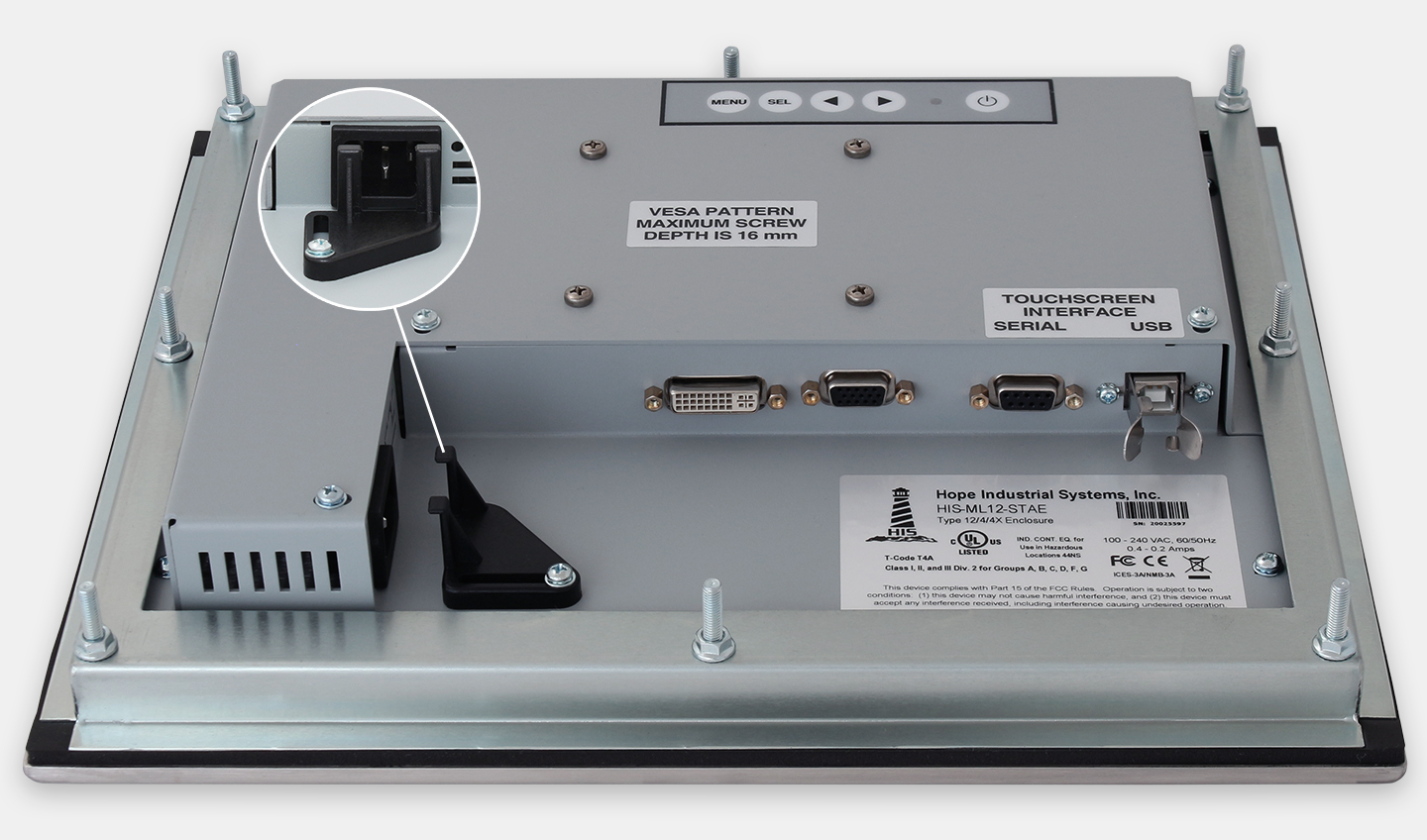

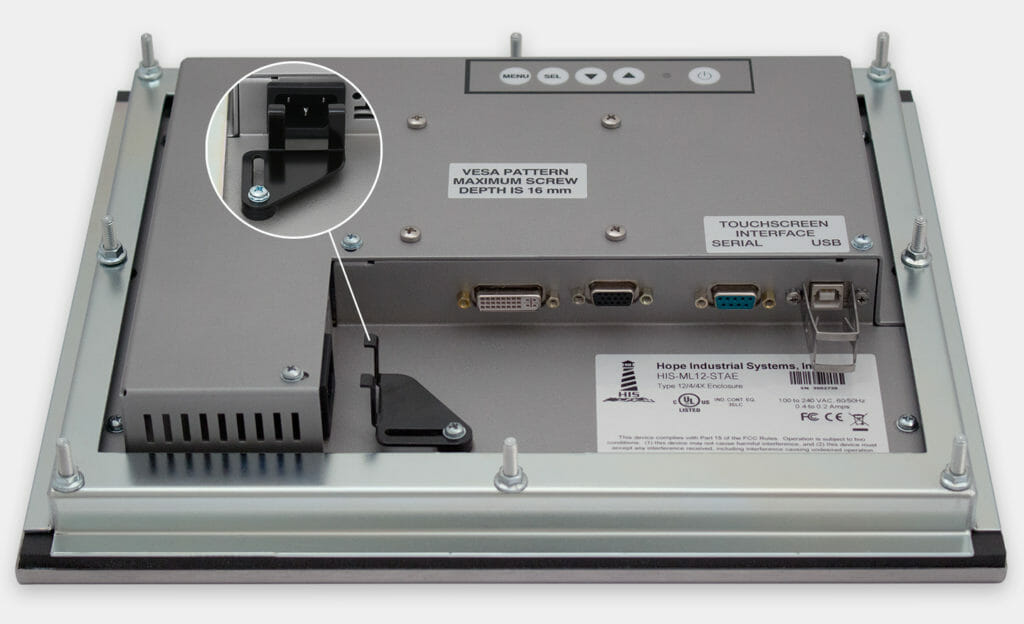

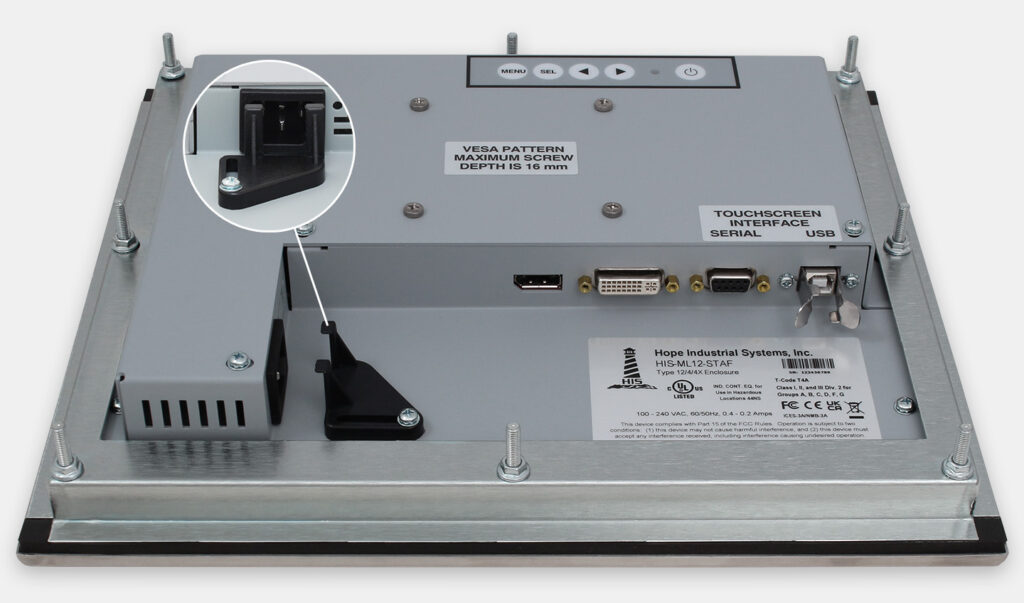

    • AC Power Models – 100 to 240 VAC, 0.4/0.2 A, 60/50 Hz; AC power cable included

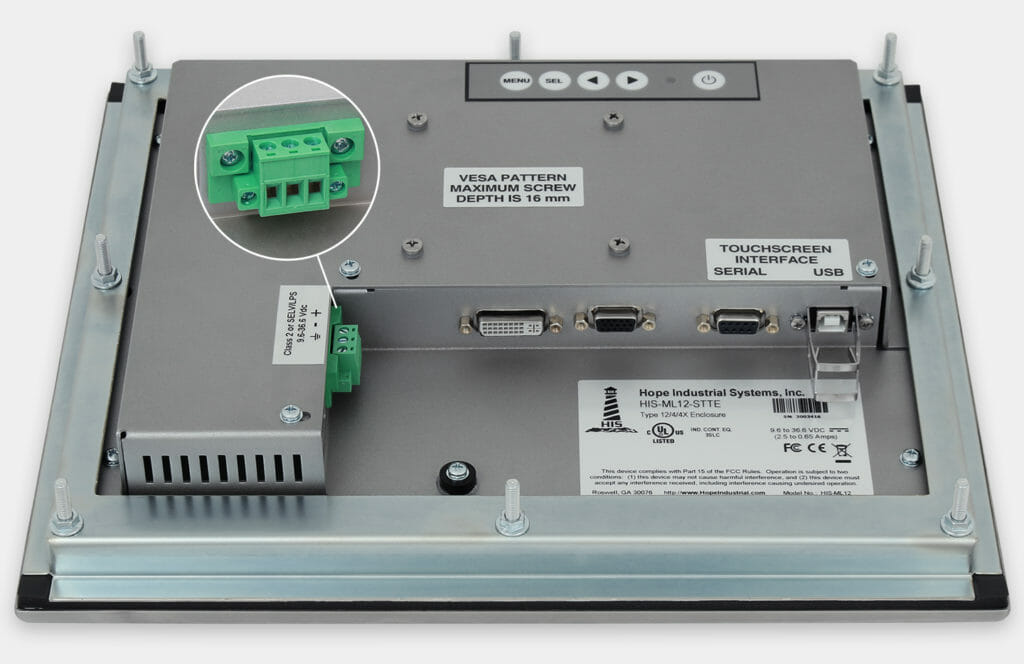

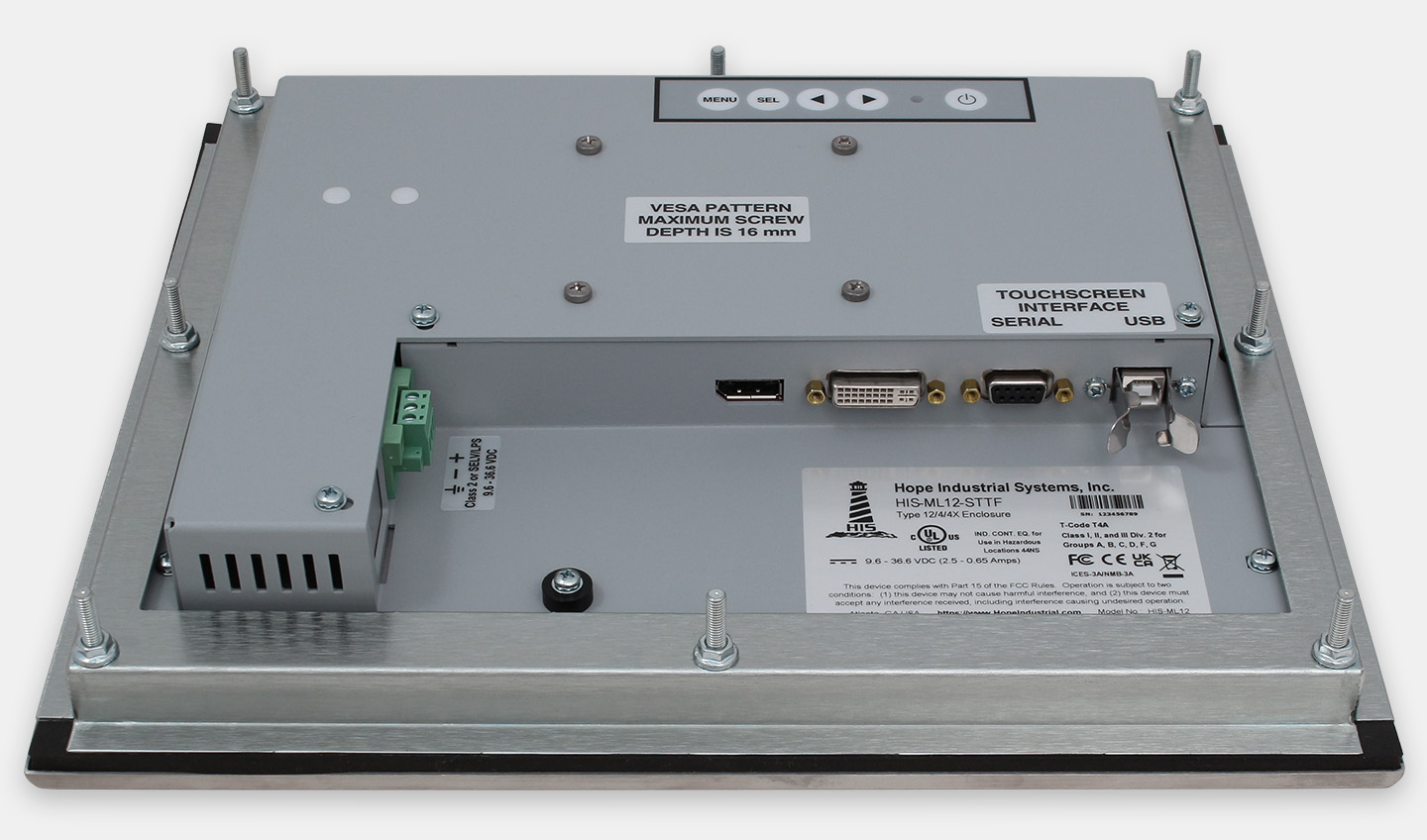

    • DC Power Models – 9.6 to 36.6 VDC, 2.5 to 0.65 A, Class 2 or SELV/LPS
  • Power Consumption (typical) – 14.9 W
  • Power Consumption (standby mode) – < 4 W

Environmental

  • Panel Rating (with proper installation)
    • Black Powder-Coated Carbon Steel Models – NEMA/UL Type 12/4; IP65/IP66
    • Stainless Steel Models – NEMA/UL Type 12/4/4X; IP65/IP66
    • More on IP / NEMA ratings
  • Operating Temperature – 0° to 50°C (32° to 122°F)
  • Storage Temperature – -20° to 60°C (-4° to 140°F)
  • Humidity – 20% to 90% non-condensing
  • Operating Shock – 15 g, 6 msec, half-sine
  • Operating Vibration (sine) – 1.0 g, swept sine 9-500 Hz
  • Transport Vibration (random) – 0.1g² / Hz, 10-200 Hz; 0.03g² / Hz, 200-2000 Hz
  • Altitude – Operating: up to 3.05 km; Non-operating: up to 12.19 km
  • Environmental Sulfur Gas Protection Option – includes glass-armored touch screen, vapor-phase corrosion inhibitor, and extensive sealing; call for details. More on Sulfur Gas Protection.

Functional

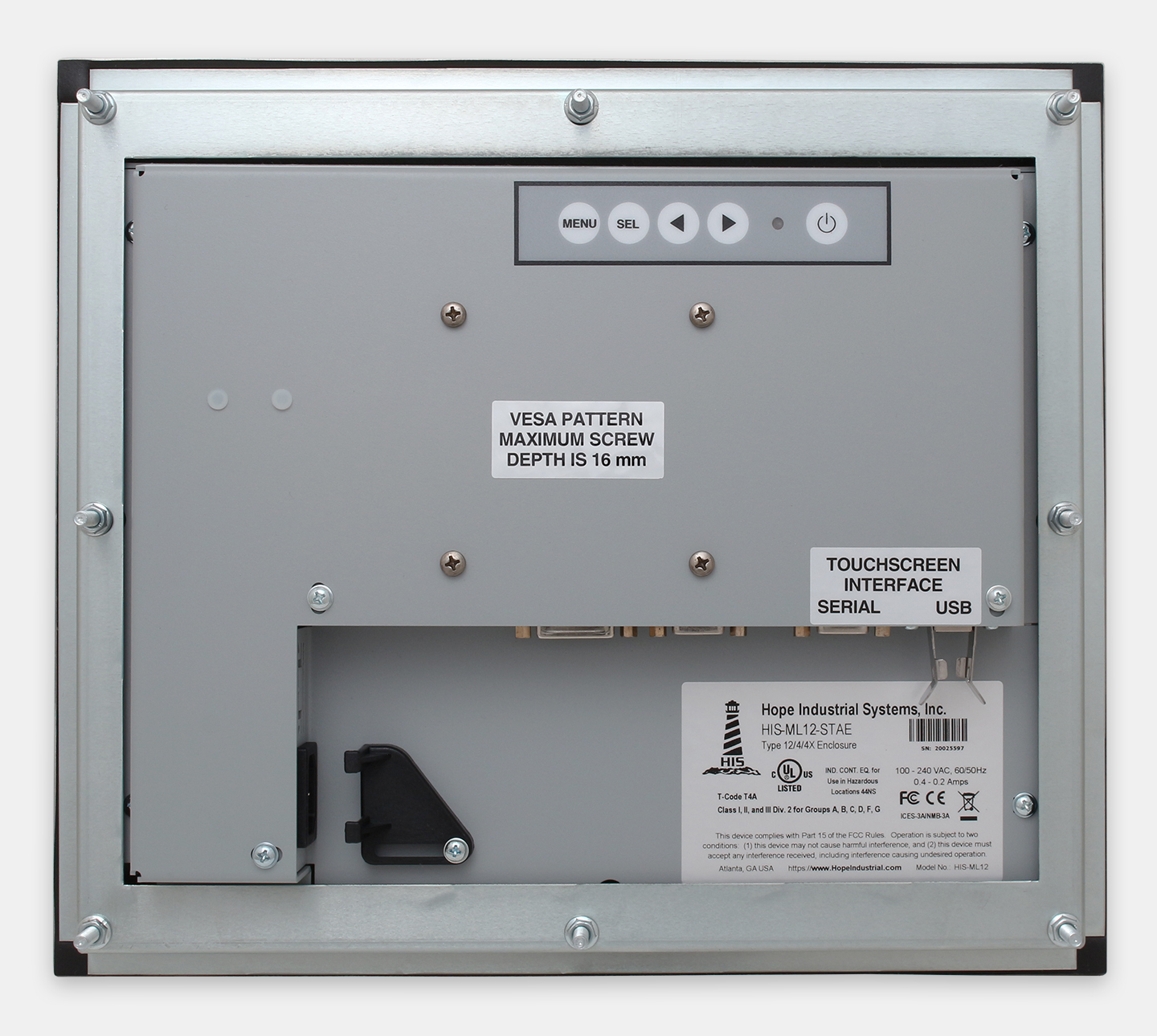

  • Panel Controls (rear access) – Menu, SEL, Left, Right, Power
  • OSD (On Screen Display) Controls – Contrast, Brightness, Sharpness, Color, Timing, Auto setup, H total, V position, H position, Phase, Inputs, OSD, Info, Reset to factory defaults, Source scan, Advanced Setup

Physical

  • Enclosure Type – panel mount; rear collar compresses gasket against panel; held by 8 M5 studs
  • Maximum Panel Thickness – 7.9 mm (5/16″)

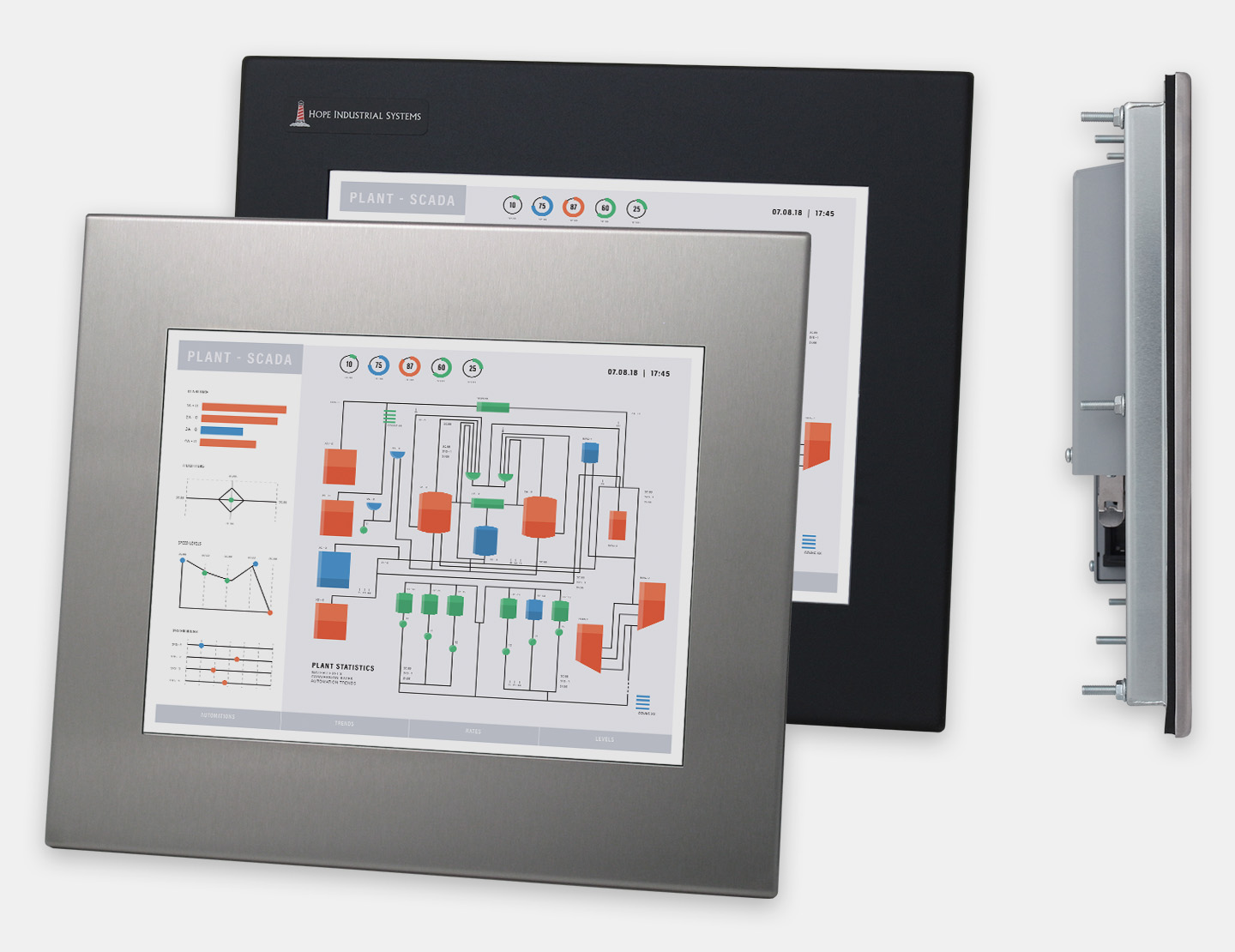

  • Bezel Material – black powder-coated carbon steel or stainless steel faceplate
  • VESA Mount Holes – standard 75 mm VESA mounting holes, M4 threads (hardware included)
  • Maximum Depth Behind Front Edge of Panel – 50.3 mm (1.98″)
  • Front Bezel Outside Dimensions (W x H x D) – 338.1 mm x 295.7 mm x 7.1 mm (13.31″ x 11.64″ x 0.28″) (not including gasket)
  • Cutout Dimensions (W x H) – 307.8 mm x 262.9 mm (12.12″ x 10.35″)
  • Net Weight – 3.86 kg (8.5 lbs.)
  • Shipping Weight – 5.17 kg (11.4 lbs.)

Compliances and Certifications

12" Industrial Panel Mount Monitors and Touch Screens
Bezel MaterialPower InputWindow OptionPart NumberPrice
Stainless SteelACSingle-Touch Resistive Touch ScreenHIS-ML12-STAE$985£770€915915 €HIS-ML12-STAE
Glass (non-touch)HIS-ML12-SGAE$885£695€820820 €HIS-ML12-SGAE
Acrylic (non-touch)HIS-ML12-SAAE$875£685€815815 €HIS-ML12-SAAE
DCSingle-Touch Resistive Touch ScreenHIS-ML12-STTE$1,045£820€970970 €HIS-ML12-STTE
Glass (non-touch)HIS-ML12-SGTE$945£740€875875 €HIS-ML12-SGTE
Acrylic (non-touch)HIS-ML12-SATE$935£735€870870 €HIS-ML12-SATE
Black Powder-Coated Carbon SteelACSingle-Touch Resistive Touch ScreenHIS-ML12-CTBE$970£760€900900 €HIS-ML12-CTBE
Glass (non-touch)HIS-ML12-CGBE$870£680€810810 €HIS-ML12-CGBE
Acrylic (non-touch)HIS-ML12-CABE$860£675€800800 €HIS-ML12-CABE
DCSingle-Touch Resistive Touch ScreenHIS-ML12-CTTE$1,030£805€955955 €HIS-ML12-CTTE
Glass (non-touch)HIS-ML12-CGTE$930£730€865865 €HIS-ML12-CGTE
Acrylic (non-touch)HIS-ML12-CATE$920£720€855855 €HIS-ML12-CATE
