VESA Radial Arm Mount for Industrial Monitors

Description Features

Fully Adjustable and Flexible Mounting Arm

Easily position monitor without turning knobs
Folds into 114 mm (4.5") of space, then extends up to 686 mm (27")

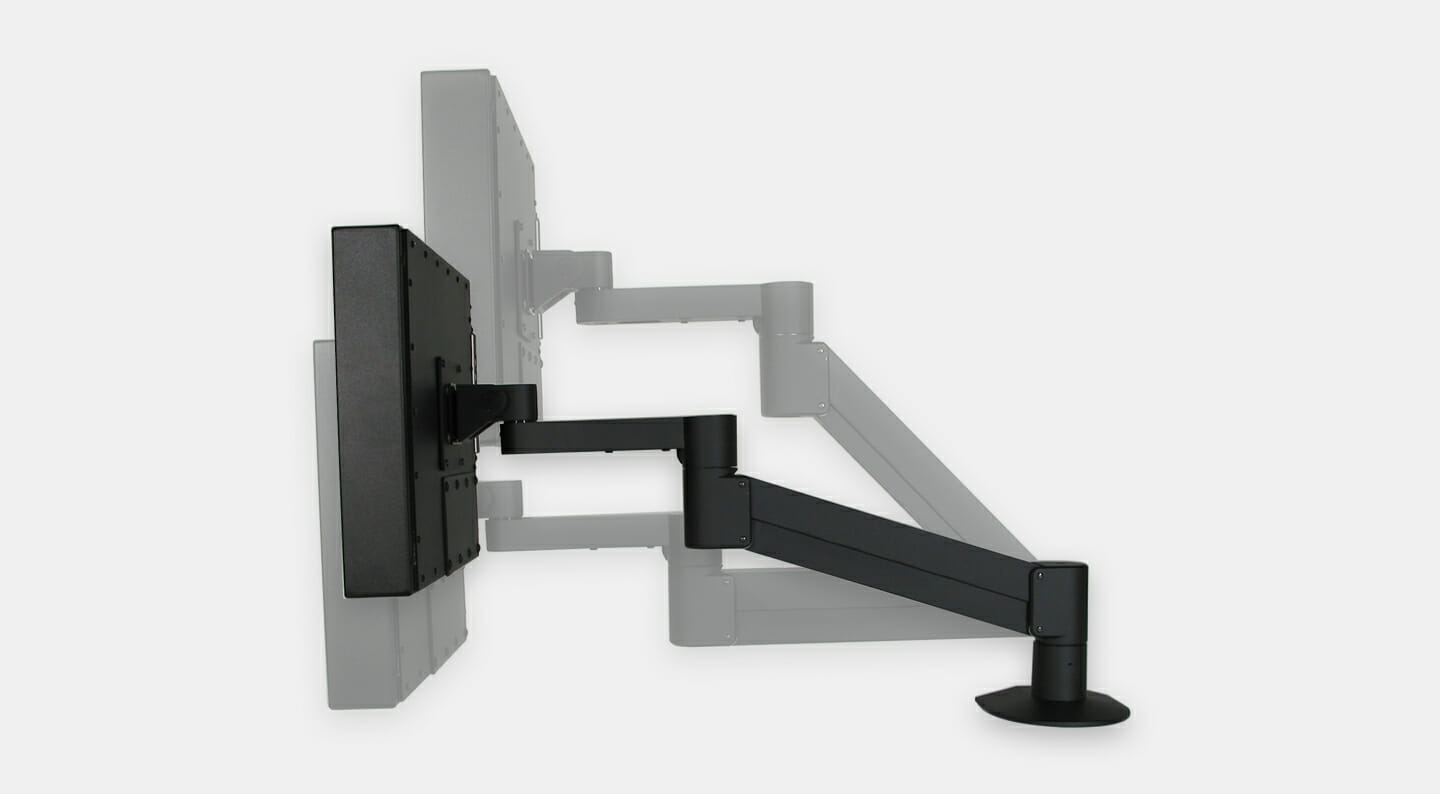

Lowers to mounting surface level, then raises up to 457 mm (18")
Pivots between landscape and portrait orientation

Industrial Specifications

6 different base mounting options for any surface
Internal cable management
Supports displays from 6 to 18 kg (13.5 to 40 lbs.)
5-year warranty

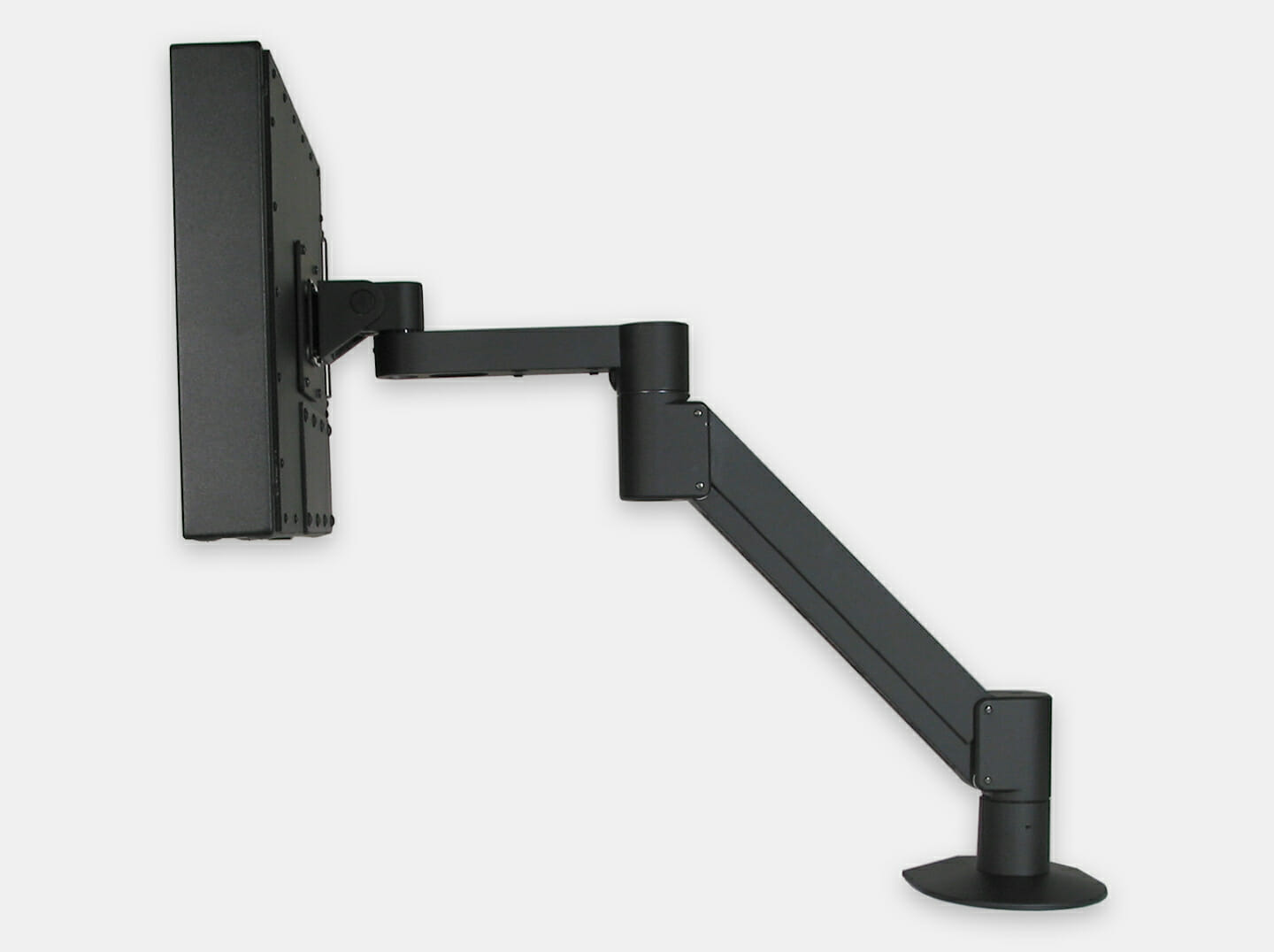

HIS VESA Industrial Monitor Radial Arm Mounts are designed to position a Universal Mount Display or other monitor above the working area.

With this mount, the monitor becomes weightless and can be positioned easily without turning knobs or screws once properly adjusted. Integrated cable management keeps power and signal cables clear of the work area.

The included mounting kit allows the arm base to be mounted 6 different ways for attachment to any vertical or horizontal surface. Supports display weights between 13.5 and 40 lbs.

Full List of Available Options

Configure a Solution

Physical and Compatibility

VESA Mounting Pattern – supports 100 mm and 75 mm patterns
Cable Management– cables concealed inside arm beneath removable cable track covers
Monitor Pivot – 90° for portrait to landscape orientation

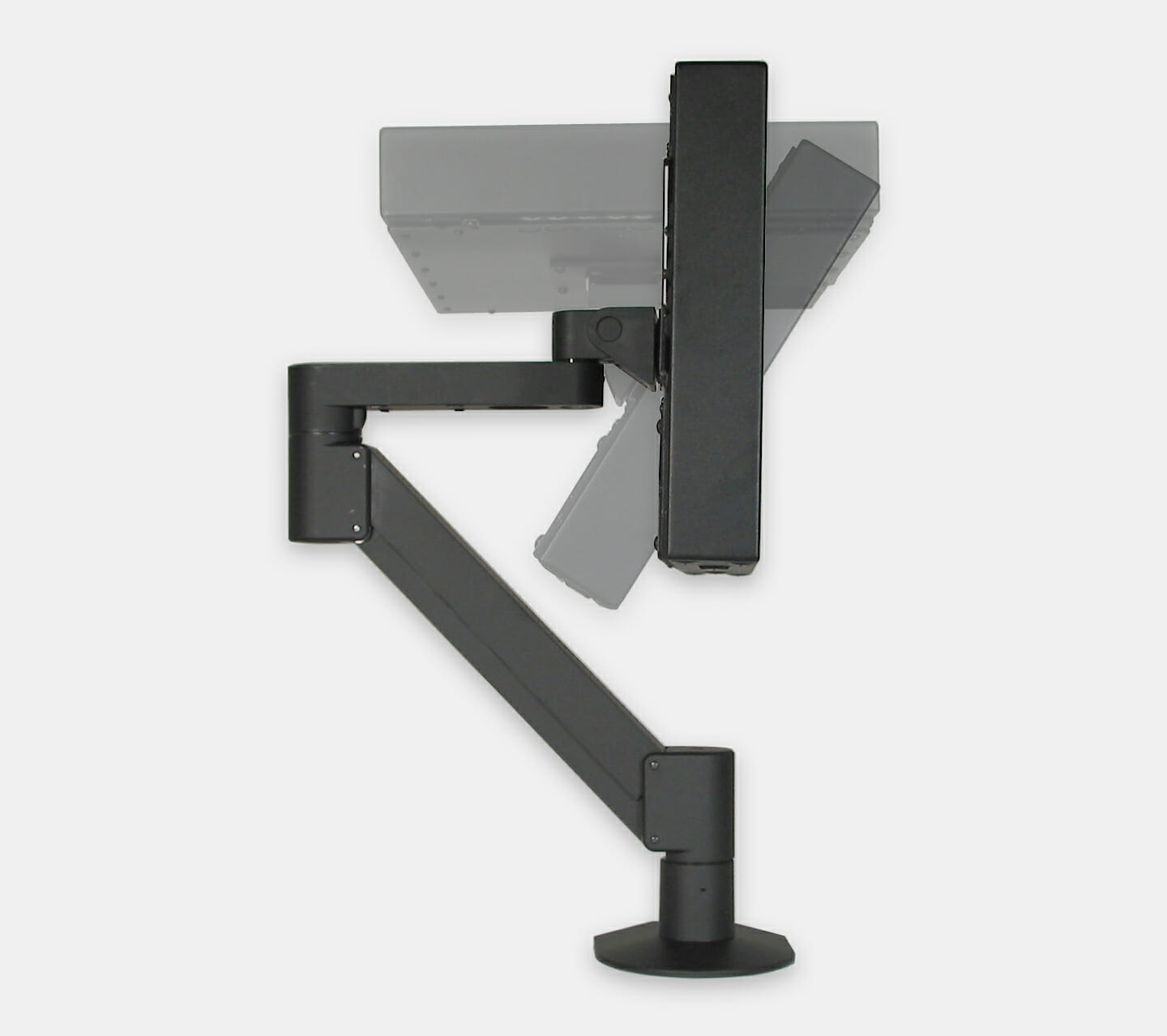

Vertical Tilt Range – up to 200°

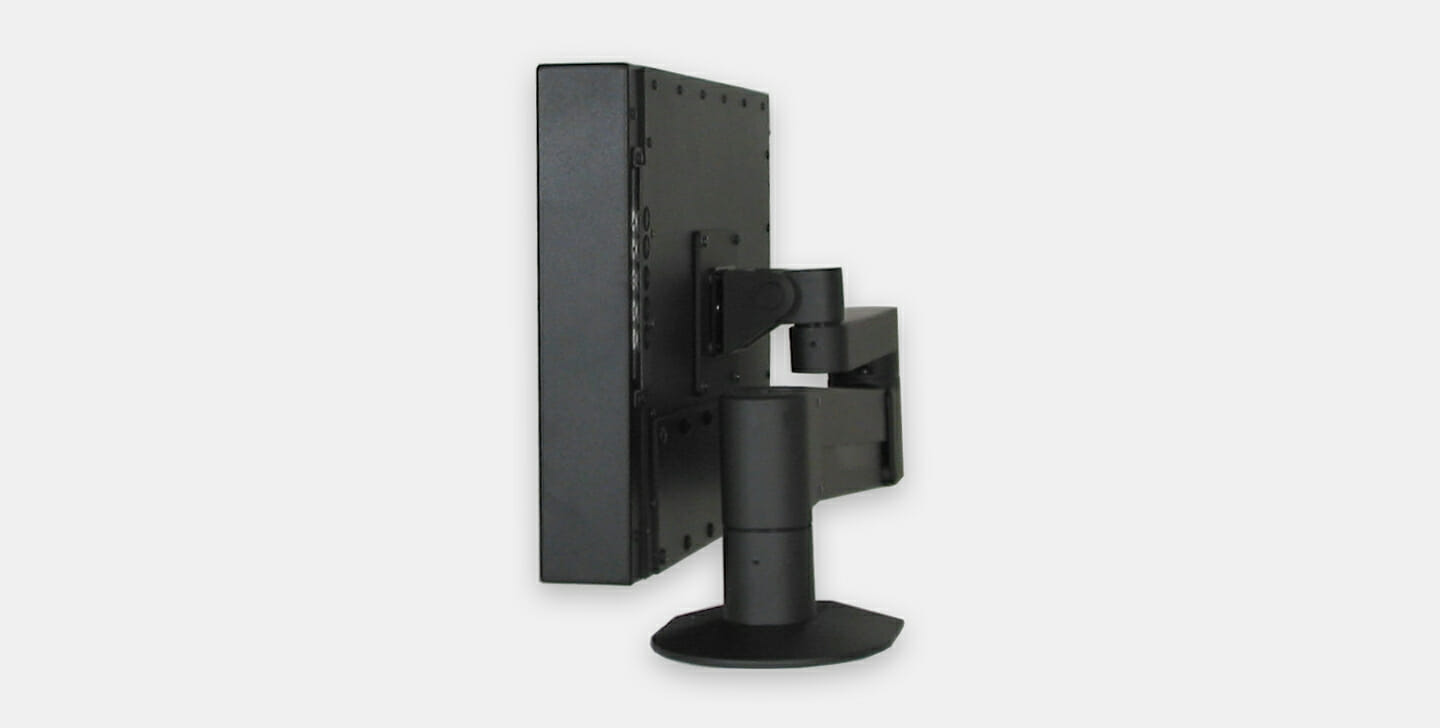

Extension Range – 114.3 mm (4.50″) folded to 686 mm (27.00″) maximum extension
Vertical Range – 457.2 mm (18.00″)
Weight Range – 6.1 kg – 18.14 kg (13.5 – 40 lbs.) for a monitor with a maximum depth of 76.2 mm (3″); please call us if your equipment exceeds a depth of 76.2 mm (3″).
Hope Industrial Display Compatibility – supports all Hope Universal Mount Monitors without an attached keyboard. 15″ and 17″ Universal Mount Monitors may also be used with a Monitor-Mounted Keyboard.

Mounting Options

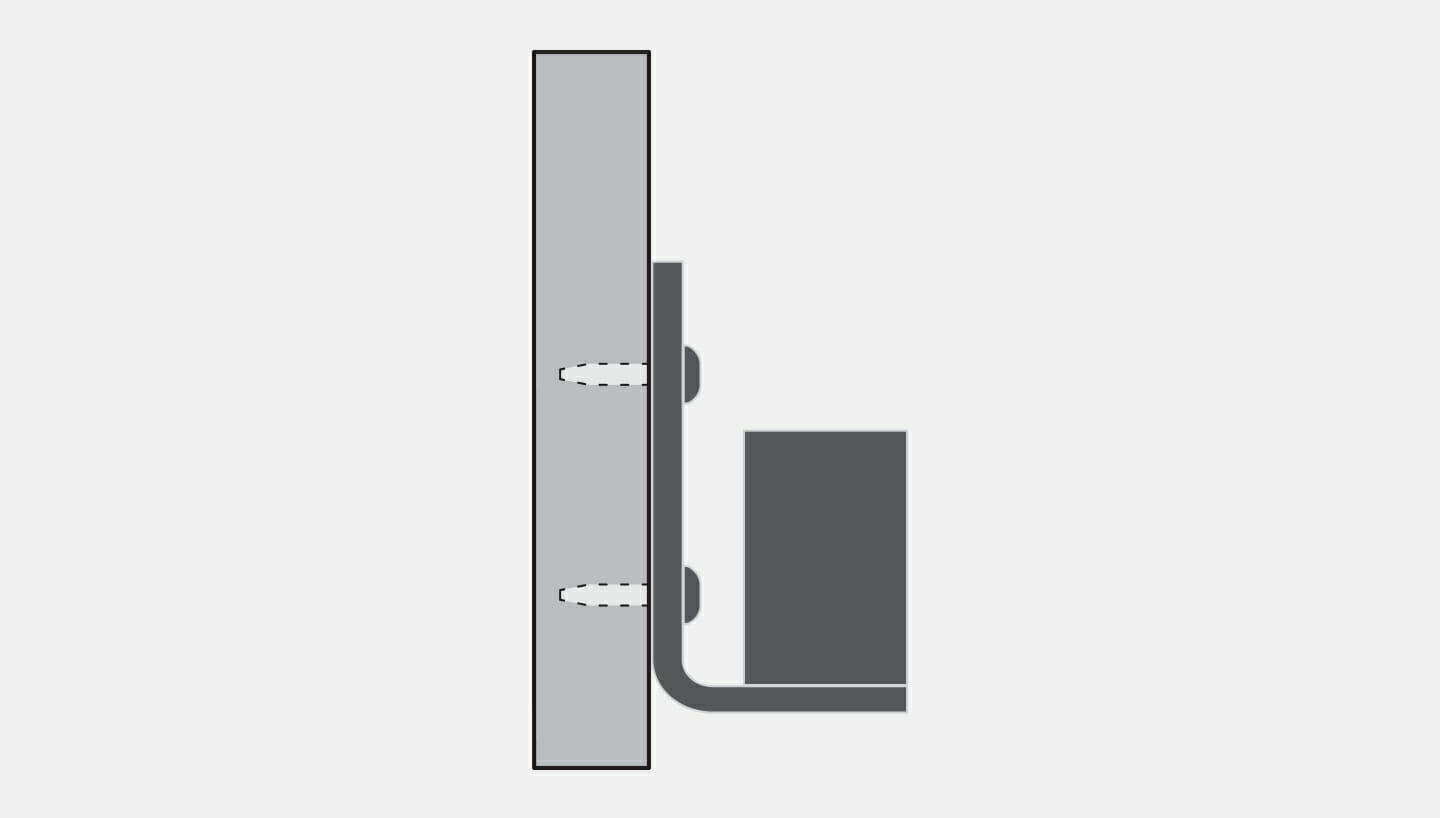

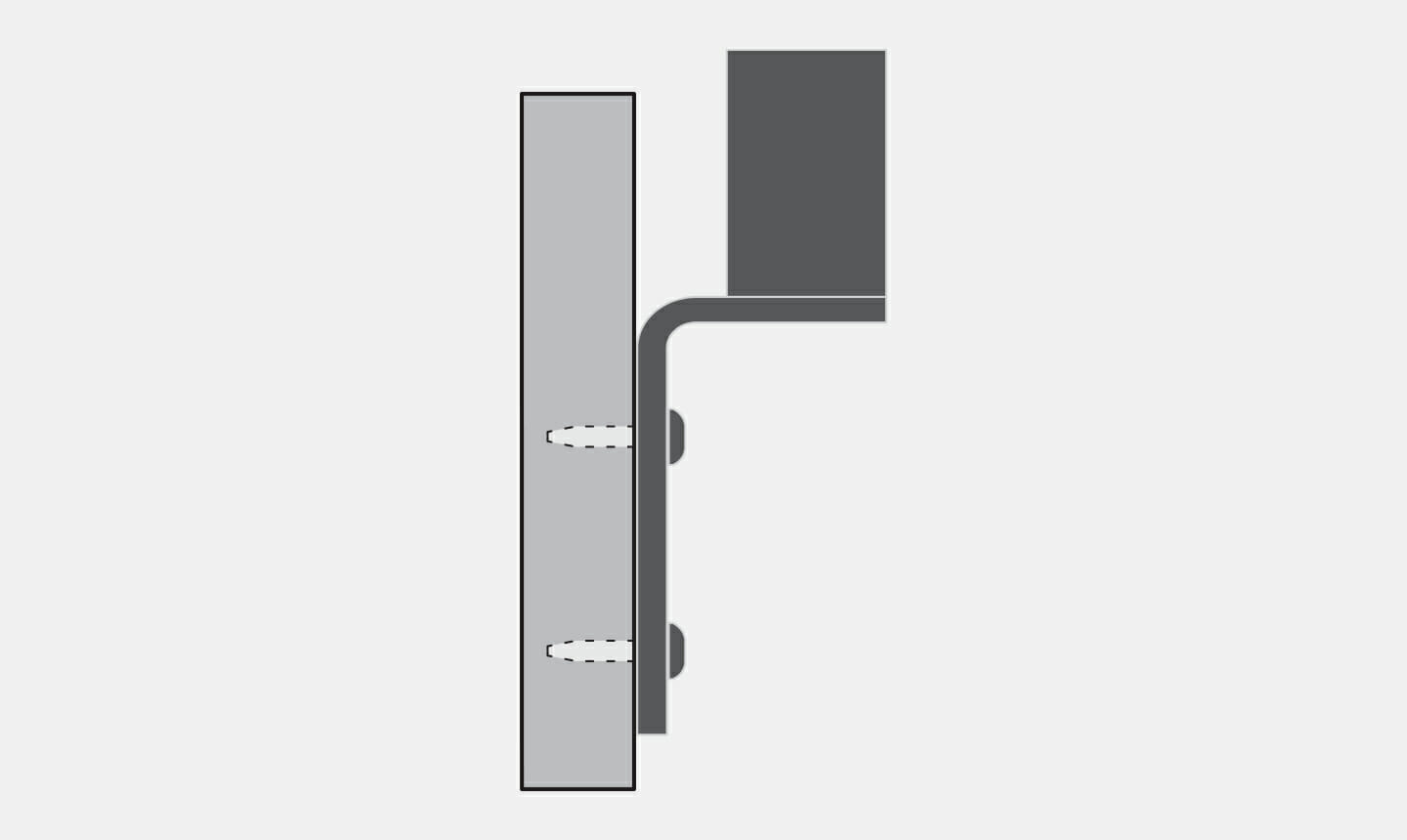

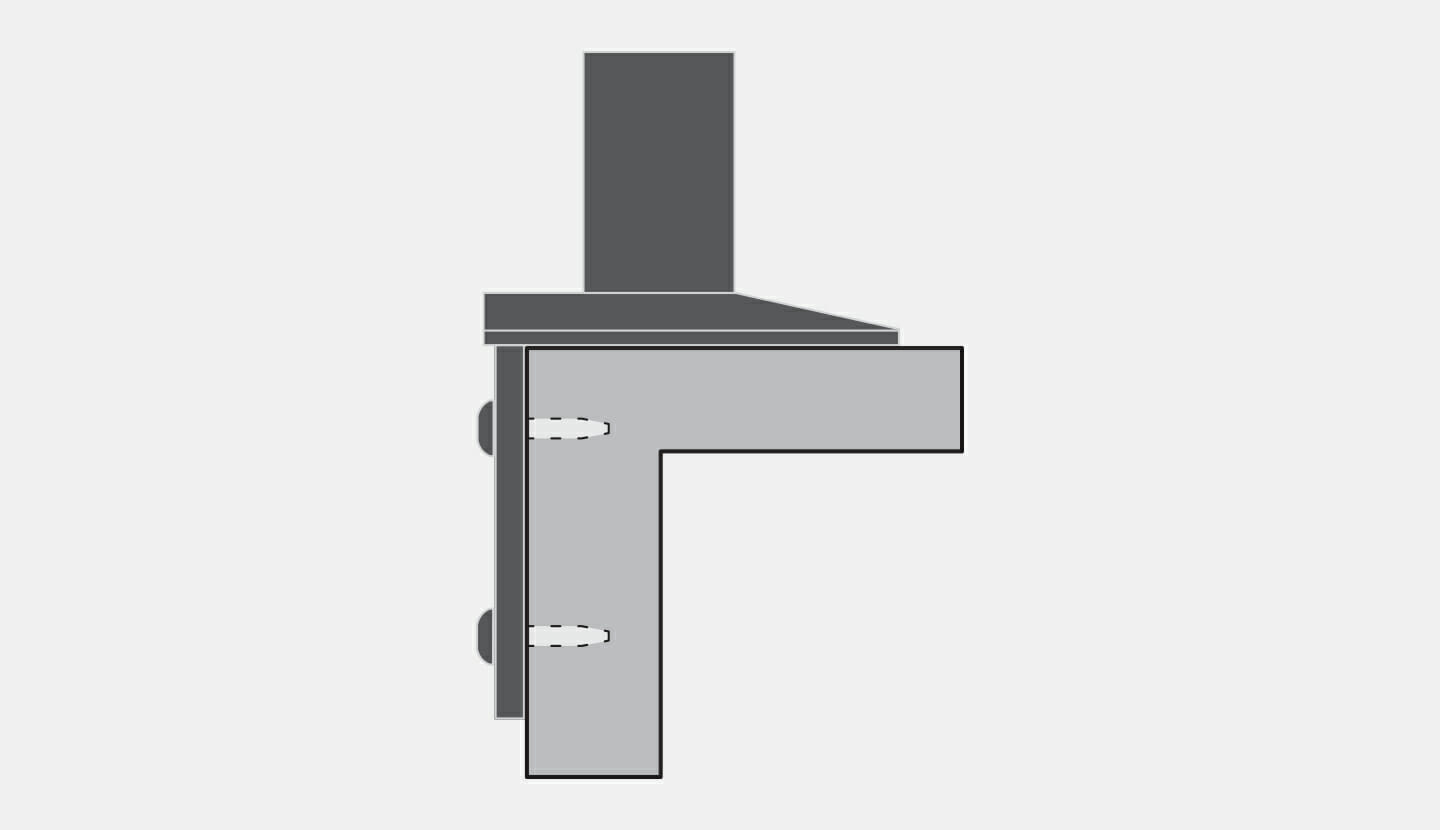

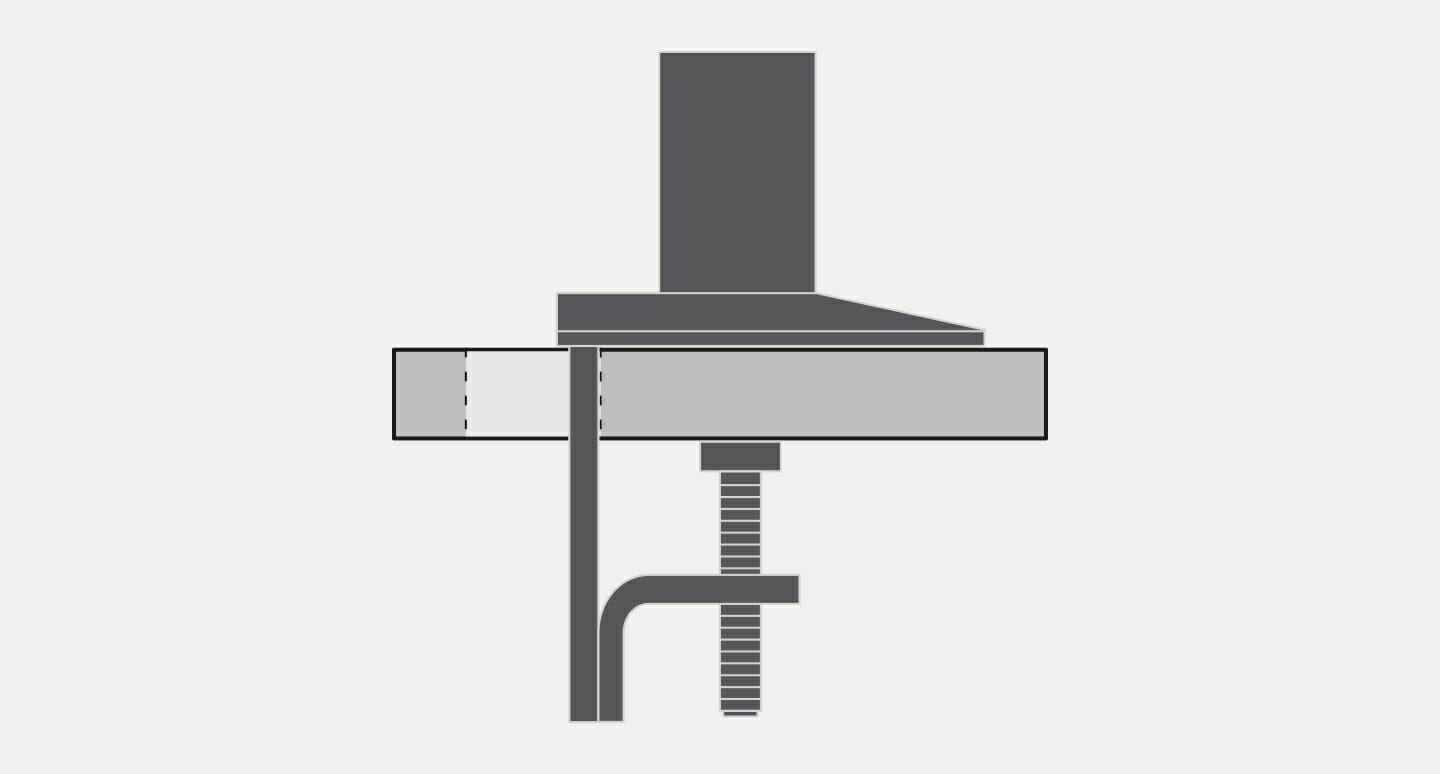

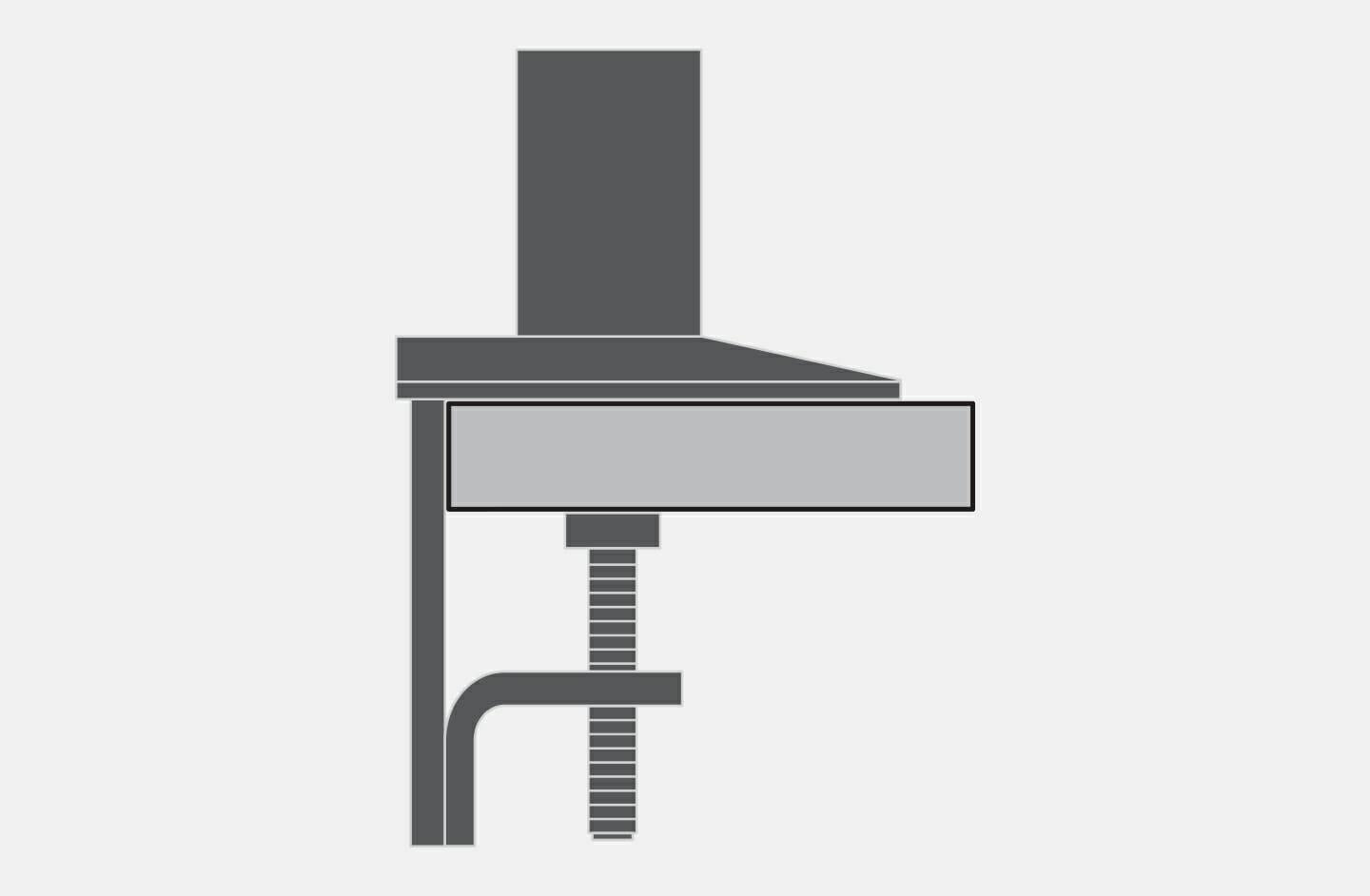

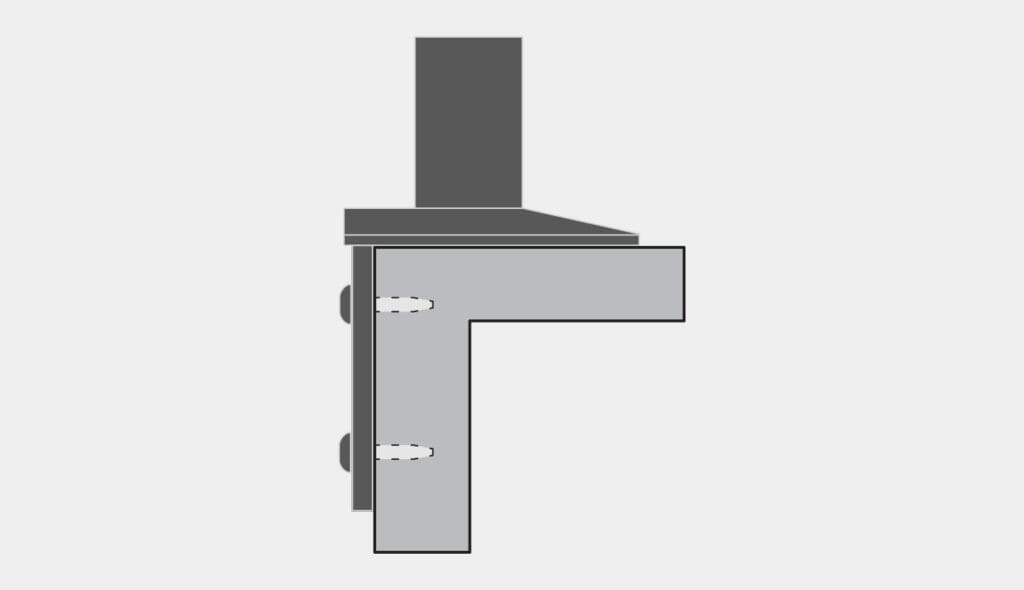

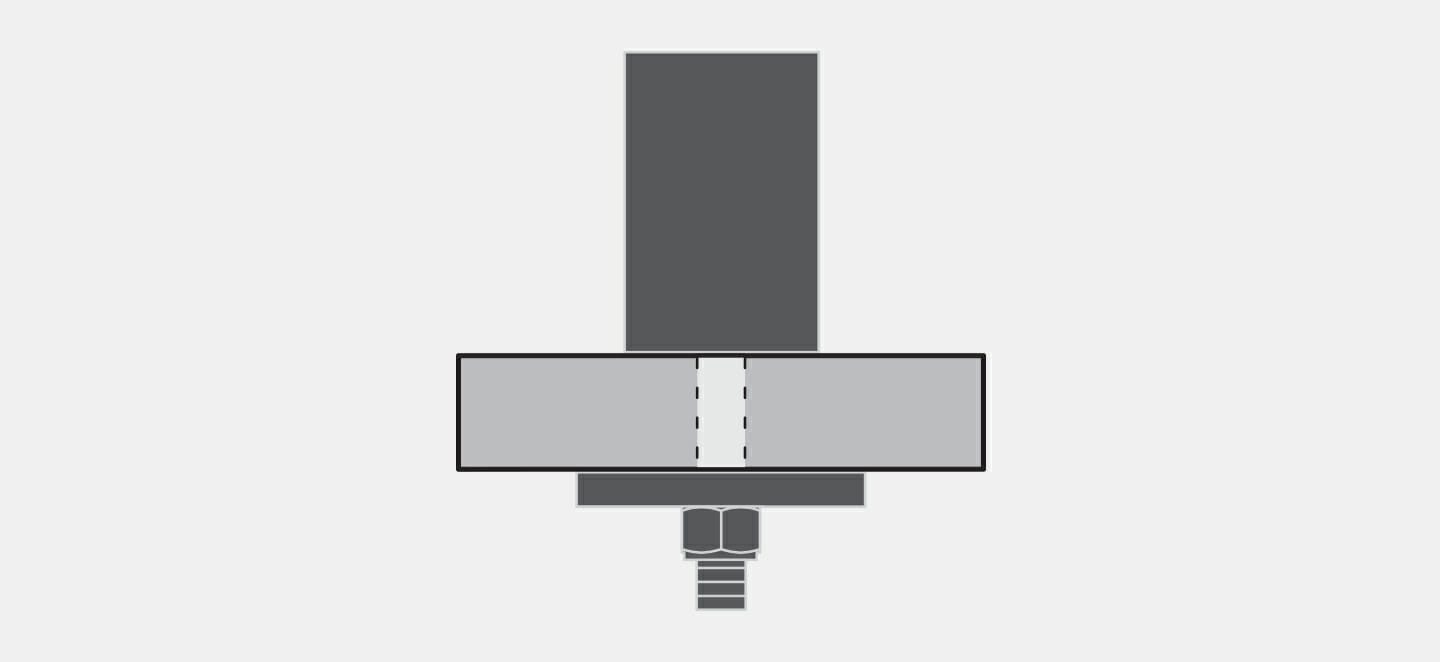

Includes flexible mounting kit providing 6 different mounting options: bench clamp, through-bench, wall mount, reverse wall mount, side mount, grommet mount.
