Our Industrial Benchtop Keyboards can be placed on any tabletop or other surface in the factory where a fully rugged, NEMA 4/4X, IP65/IP66-rated keyboard and pointing device is needed. The benchtop form factor is flexible and can be easily moved or relocated as needed. These keyboards also make an excellent replacement for a non-industrial keyboard that is frequently damaged.

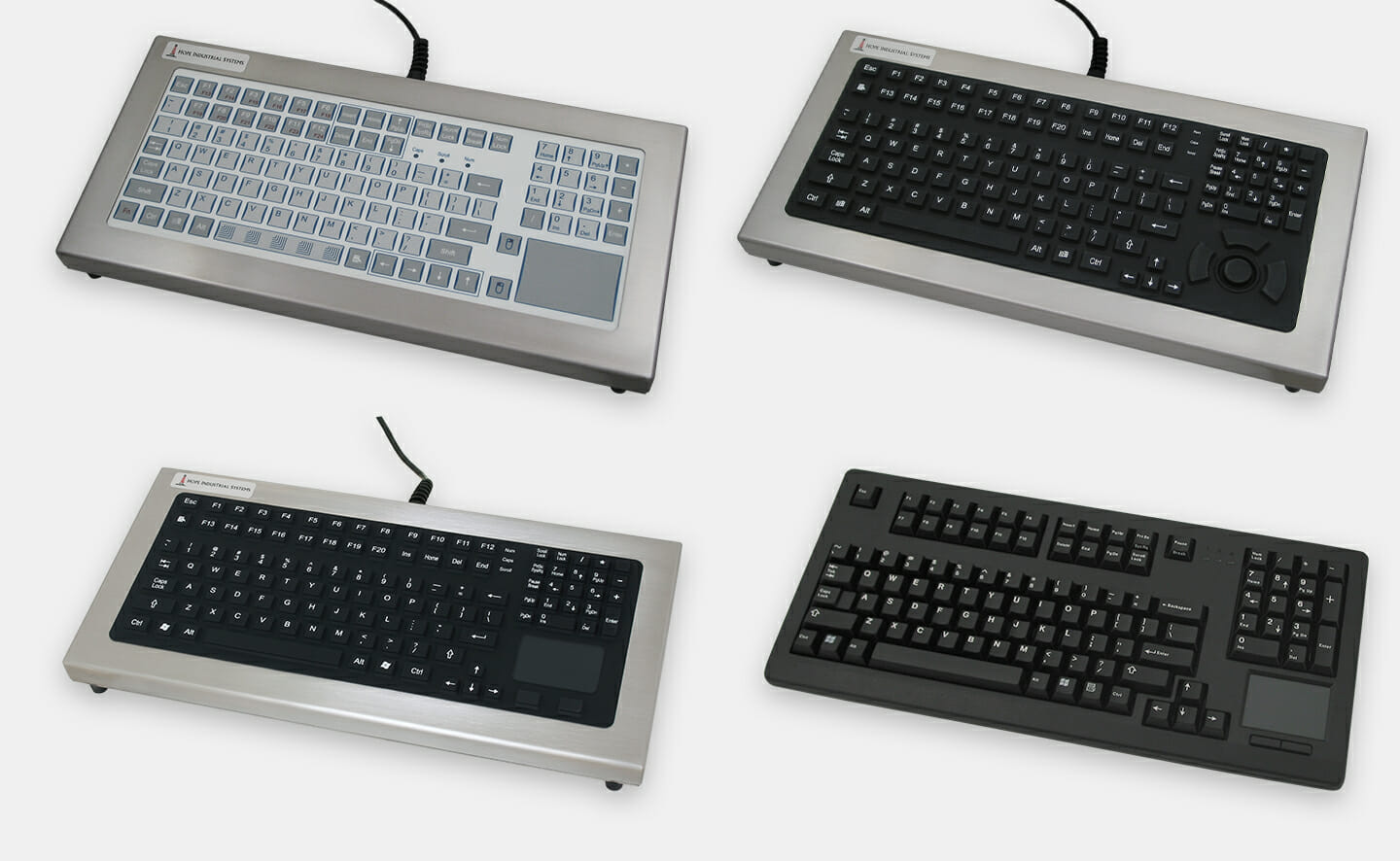

Each keyboard is available in either a stainless or black powder-coated carbon steel enclosure. Three different keypad options are available:

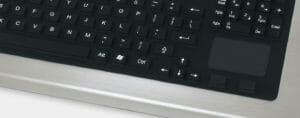

  • Full-Travel Keypad with Touchpad – durable silicone overlay protects full-travel keys for easy touch-typing while maintaining wash-down NEMA 4/4X rating. Familiar capacitive touchpad pointer can be used with thin gloves.

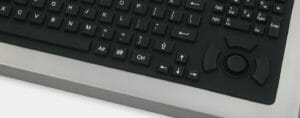

  • Full-Travel Keypad with Button Pointer – durable silicone overlay protects full-travel keys for easy touch-typing while maintaining wash-down NEMA 4/4X rating. Button pointer can be used with any type of gloves and is unaffected by standing water or debris.

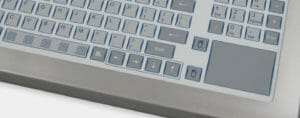

  • Short-Travel Keypad with Touchpad – durable polyester membrane resists chemicals and scratching, and provides a flat, easy-to-clean surface that does not trap dirt. Fully wash-down NEMA 4/4X certified. Familiar capacitive touchpad pointer can be used with thin gloves.

For lighter-duty applications, we also offer our NEMA 2, IP22-rated Standard Benchtop Keyboard, which combines a high-quality, full-format 104-key keyboard with a capacitive touchpad in a compact enclosure. A drip-proof flexible overlay (included) provides increased durability. This keyboard is fully compatible with our line of Monitor-Mounted Keyboard Trays.

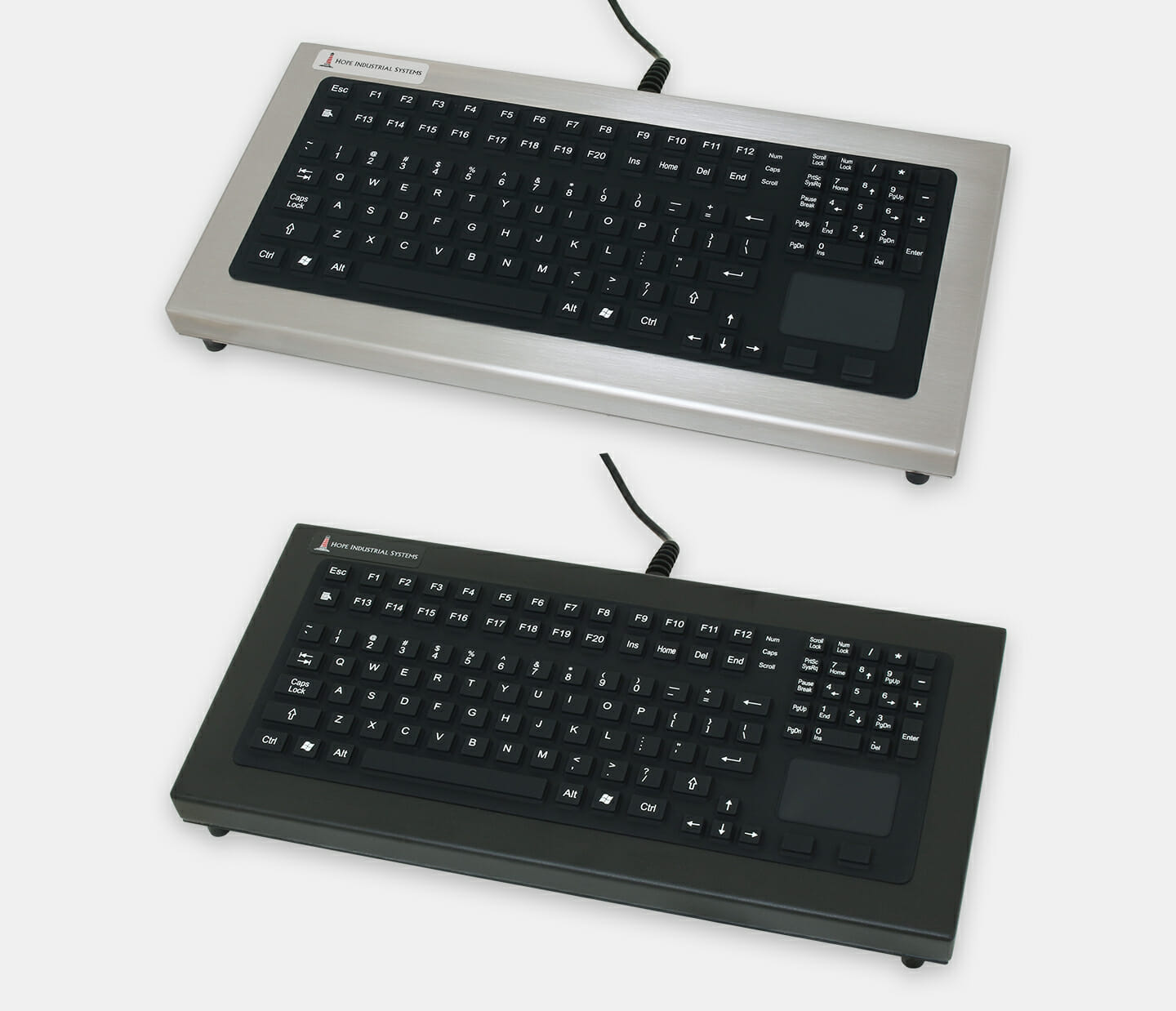

Full-Travel Benchtop Keyboards with Touchpad (KB-R3-BCH models) - NEMA 4/4X, IP65/IP66

  • Keypad
    • Keys – 113-key functionality with numeric keypad and 20 function keys
    • Overlay – silicone overlay with long-travel keys
    • Key Material – industrial silicone rubber
    • Key Switch Force / Travel – 0.45 lb. (2.0 N) / 2.5 mm (0.098″)
    • Key Switch Life – 10 million cycles
  • Computer Connection
    • Connection – single USB type A
    • Cable Length – 4.6 m (15′)
  • Capacitive Touchpad
    • Resolution – 40 counts / mm
    • Use with Gloves – compatible with thin gloves; for heavy gloves see our Button Pointer models
    • Use with Standing Water – while touchpad is designed for use in wet environments, standing water on the touchpad can diminish pointer accuracy. Once water is wiped away, normal accuracy is instantly restored.
  • Environmental
    • NEMA Rating
      • Stainless Steel Models – sealed to NEMA 4X, IP65/IP66 standards for harsh, industrial environments, 3rd-party certified
      • Black Carbon Steel Models – sealed to NEMA 4, IP65/IP66 standards for harsh, industrial environments, 3rd-party certified
    • Operating Temperature – -20° to 60°C (-4° to 140°F)
    • Storage Temperature – -40° to 70°C (-40° to 158°F)
    • Humidity – 20% to 90% non-condensing
  • Physical
    • Dimensions (W x H x D) – 416.6 mm x 206.6 mm x 63.5 mm (16.40″ x 8.14″ x 2.50″)
    • Weight
      • Stainless Steel Models – 2.7 kg (5.85 lbs.)
      • Black Carbon Steel Models – 2.6 kg (5.7 lbs.)
    • Keyboard Tray – not compatible with Hope Industrial Keyboard Trays. See our Monitor-Mounted Keyboards for keyboard attachment to Universal Mount Monitors.
  • Compliances and Certifications
    • Electrical – CE, UKCA, UL/EN/IEC62368-1, UL Listed – File No. E212889, FCC Class A
    • Environmental – WEEE
    • Hazardous Locations – Rated I.T.E. for Class I, II, III, Division 2 for Groups A, B, C, D, F, G; Temp Code T5 (file No. E334953) per ANSI/ISA-12.12.01-2015 and CAN/CSA C22.2 No. 213-15

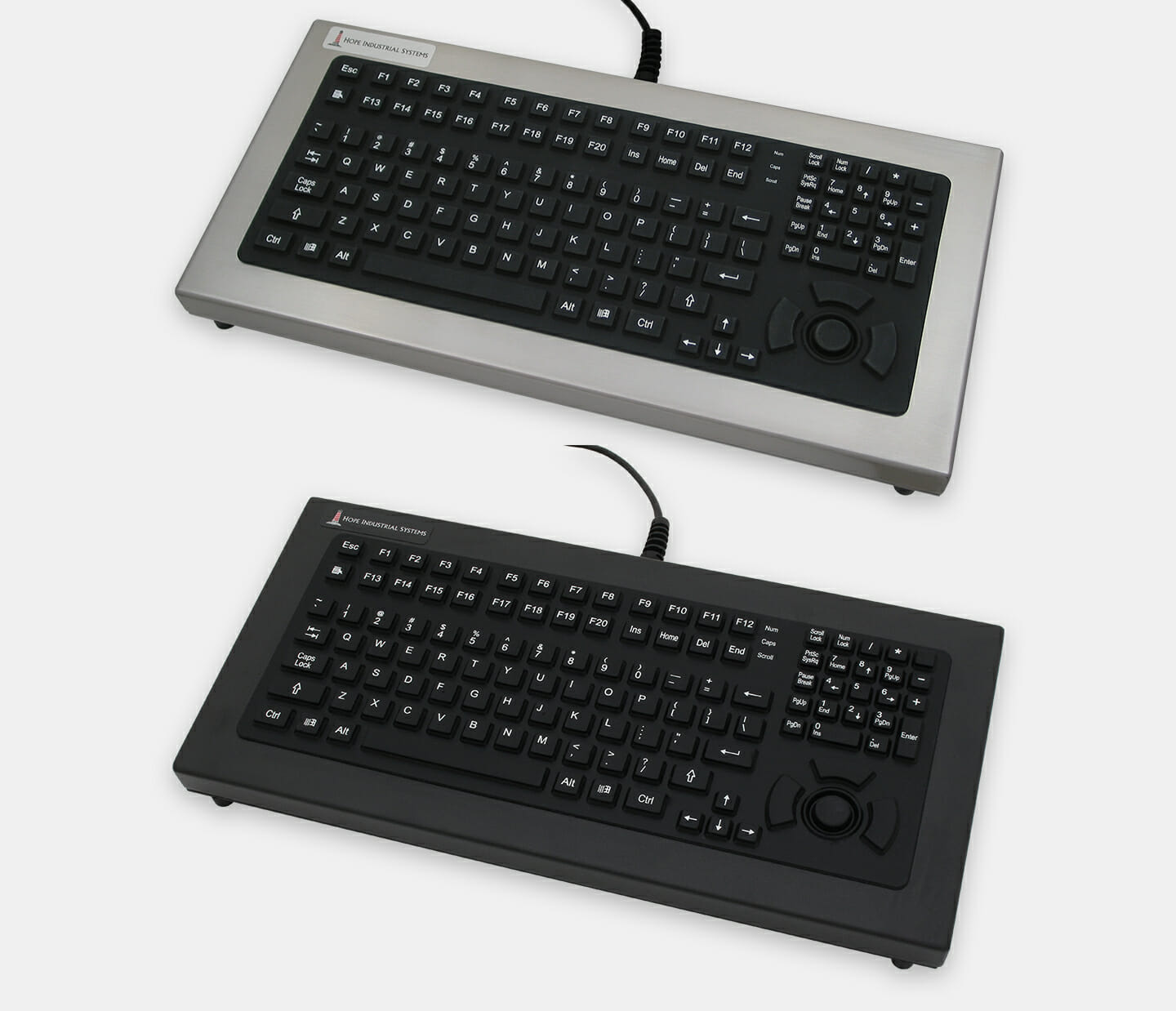

Full-Travel Benchtop Keyboards with Button Pointer (KB-R2-BCH models) - NEMA 4/4X, IP65/IP66

  • Keypad
    • Keys – 113-key functionality with numeric keypad and 20 function keys
    • Overlay – silicone overlay with long-travel keys
    • Key Material – industrial silicone rubber
    • Key Switch Force / Travel – 0.45 lb. (2.0 N) / 2.5 mm (0.098″)
    • Key Switch Life – 10 million cycles
  • Computer Connection
    • Connection – single USB type A
    • Cable Length – 4.6 m (15′)
  • Button Pointer
    • Technology – Hall effect sensor
    • Use with Gloves – compatible with all gloves
  • Environmental
    • NEMA Rating
      • Stainless Steel Models – sealed to NEMA 4X, IP65/IP66 standards for harsh, industrial environments, 3rd-party certified
      • Black Carbon Steel Models – sealed to NEMA 4, IP65/IP66 standards for harsh, industrial environments, 3rd-party certified
    • Operating Temperature – -20° to 60°C (-4° to 140°F)
    • Storage Temperature – -40° to 70°C (-40° to 158°F)
    • Humidity – 20% to 90% non-condensing
  • Physical
    • Dimensions (W x H x D) – 416.6 mm x 206.6 mm x 63.5 mm (16.40″ x 8.14″ x 2.50″)
    • Weight
      • Stainless Steel Models – 2.7 kg (5.85 lbs.)
      • Black Carbon Steel Models – 2.6 kg (5.7 lbs.)
    • Keyboard Tray – not compatible with Hope Industrial Keyboard Trays. See our Monitor-Mounted Keyboards for keyboard attachment to Universal Mount Monitors.
  • Compliances and Certifications
    • Electrical – CE, UKCA, UL/EN/IEC62368-1, UL Listed – File No. E212889, FCC Class A
    • Environmental – WEEE
    • Hazardous Locations – Rated I.T.E. for Class I, II, III, Division 2 for Groups A, B, C, D, F, G; Temp Code T5 (file No. E334953) per ANSI/ISA-12.12.01-2015 and CAN/CSA C22.2 No. 213-15

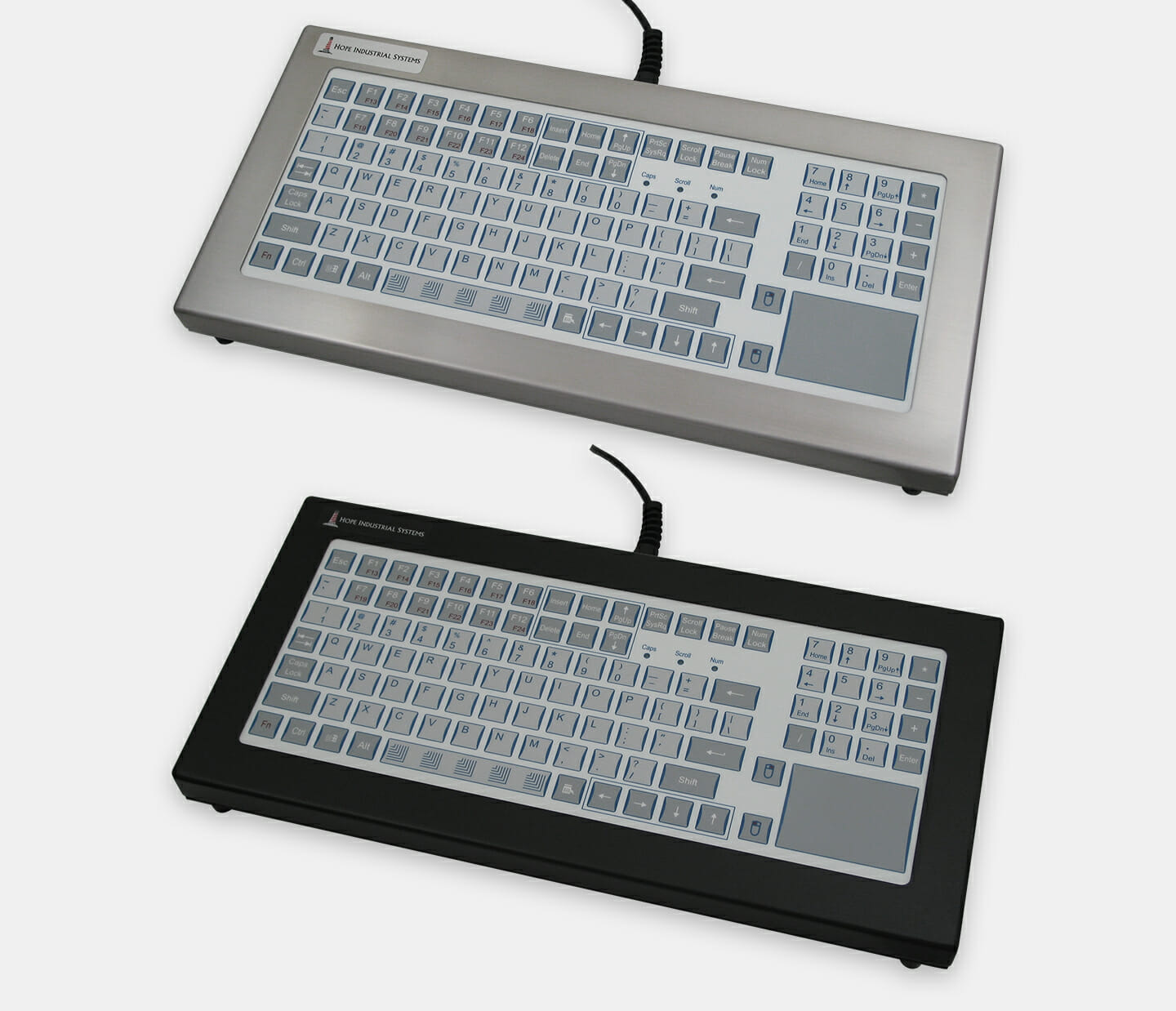

Short-Travel Benchtop Keyboards with Touchpad (KB-M2-BCH models) - NEMA 4/4X, IP65/IP66

  • Keypad
    • Keys – 102-key functionality with numeric keypad and 24 function keys
    • Overlay – polyester membrane with short-travel keys; chemical, abrasion, and scratch resistant
    • Key Switches – highly reliable OMRON mechanical switches
    • Key Switch Force / Travel – 0.59 lb. (2.6 N) / 0.3 mm (0.012″)
    • Key Switch Life – 3 million cycles
  • Computer Connection
    • Connection – single USB type A
    • Cable Length – 4.6 m (15′)
  • Capacitive Touchpad
    • Dimensions (W x H) – 65 mm x 49 mm (2.56″ x 1.94″)
    • Resolution – 40 counts / mm
    • Use with Gloves – compatible with thin gloves; for heavy gloves see our Button Pointer models
    • Use with Standing Water – while touchpad is designed for use in wet environments, standing water on the touchpad can diminish pointer accuracy. Once water is wiped away, normal accuracy is instantly restored.
  • Environmental
    • NEMA Rating
      • Stainless Steel Models – sealed to NEMA 4X, IP65/IP66 standards for harsh, industrial environments, 3rd-party certified
      • Black Carbon Steel Models – sealed to NEMA 4, IP65/IP66 standards for harsh, industrial environments, 3rd-party certified
    • Operating Temperature – -20° to 60°C (-4° to 140°F)
    • Storage Temperature – -40° to 90°C (-40° to 194°F)
    • Humidity – 20% to 90% non-condensing
  • Physical
    • Dimensions (W x H x D) – 416.6 mm x 206.6 mm x 63.5 mm (16.40″ x 8.14″ x 2.50″)
    • Weight
      • Stainless Steel Models – 2.7 kg (5.85 lbs.)
      • Black Carbon Steel Models – 2.6 kg (5.7 lbs.)
    • Keyboard Tray – not compatible with Hope Industrial Keyboard Trays. See our Monitor-Mounted Keyboards for keyboard attachment to Universal Mount Monitors.
  • Compliances and Certifications
    • Electrical – CE, UKCA, UL/EN/IEC62368-1, UL Listed – File No. E212889, FCC Class A
    • Environmental – WEEE
    • Hazardous Locations – Rated I.T.E. for Class I, II, III, Division 2 for Groups A, B, C, D, F, G; Temp Code T5 (file No. E334953) per ANSI/ISA-12.12.01-2015 and CAN/CSA C22.2 No. 213-15

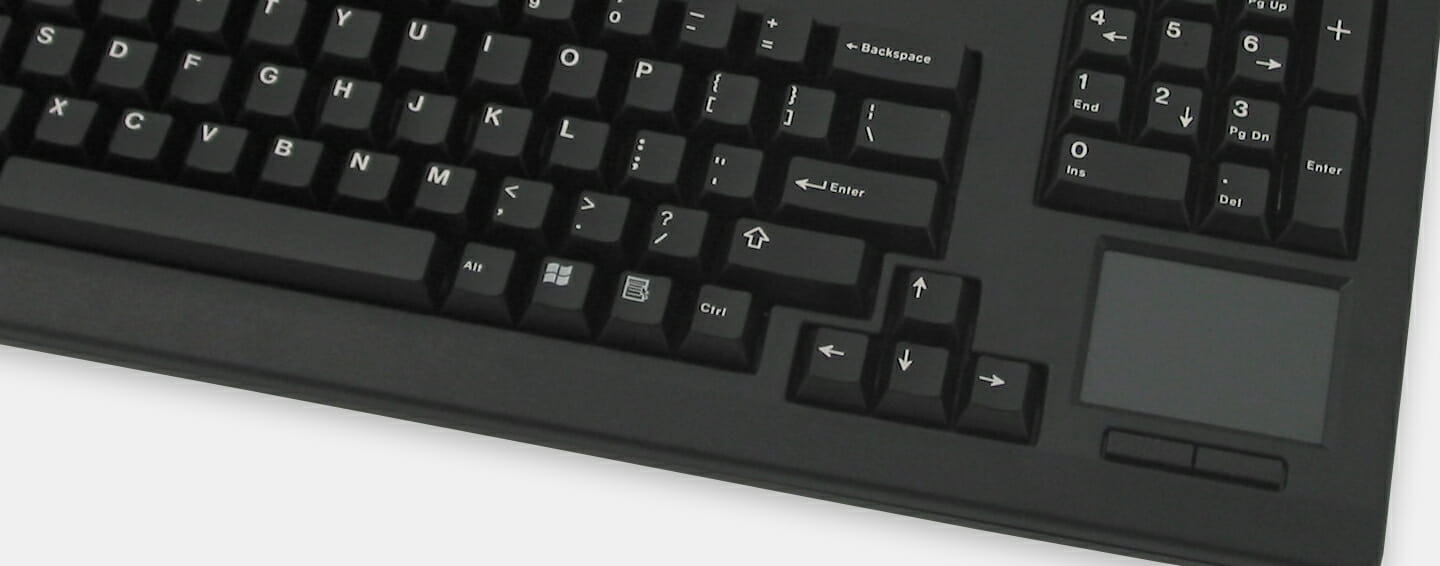

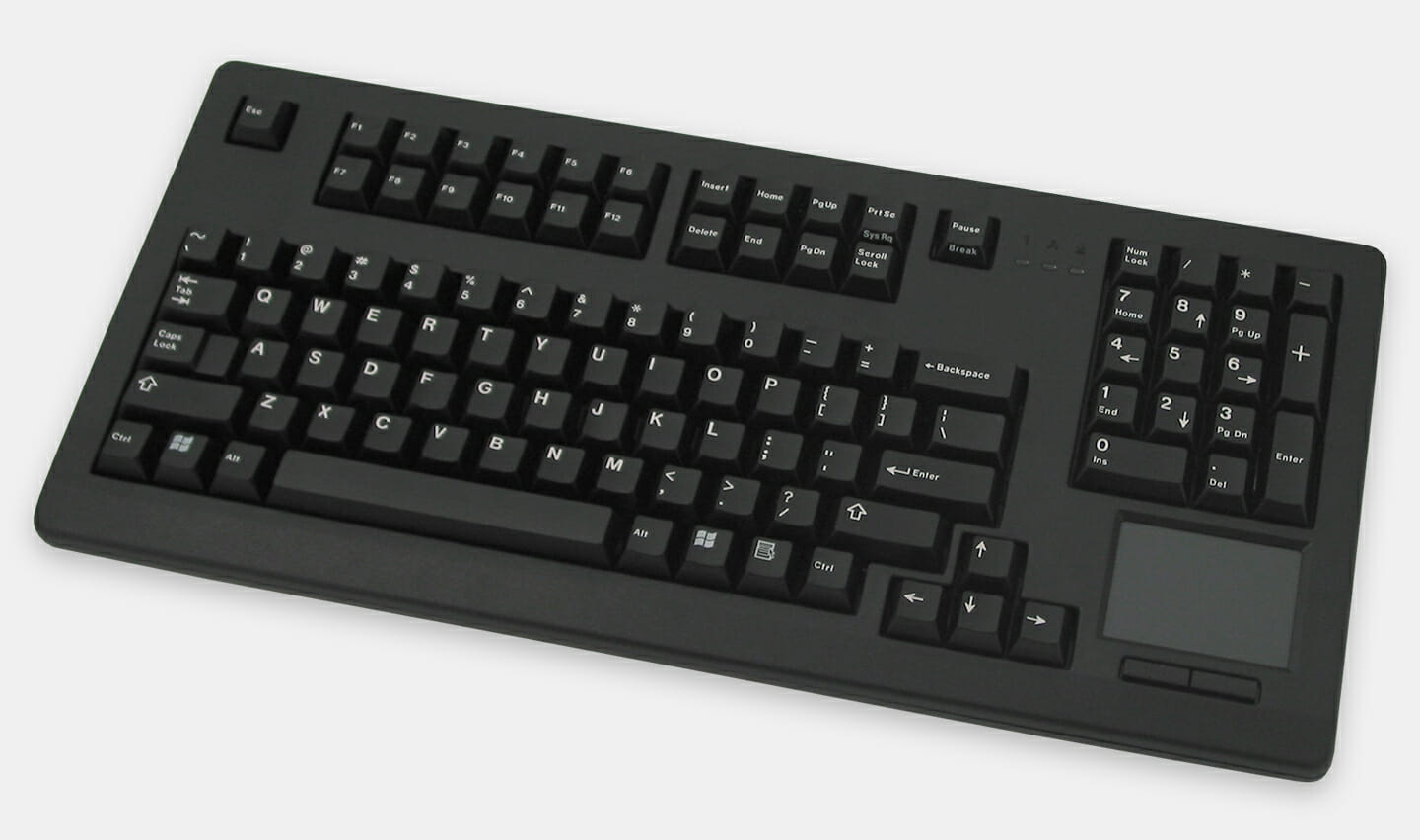

Standard Benchtop Keyboard with Touchpad (KB-PL models) - NEMA 2, IP22

  • Keypad
    • Keys – 104-key functionality with numeric keypad and 12 function keys
    • Overlay – removable flexible protective overlay included
    • Key Switch Life – rated to 50 million actuations
  • Computer Connection
    • Connection – single USB type A
    • Cable Length – 1.75 m (5.75′)
  • Capacitive Touchpad
    • Resolution – 1000 dpi
  • Environmental
    • NEMA Rating – NEMA 2, IP22
    • Operating Temperature – 0° to 50°C (32° to 122°F)
    • Storage Temperature – -20° to 60°C (-4° to 140°F)
  • Physical
    • Dimensions (W x H x D) – 415 mm x 193 mm x 36.4 mm (16.3″ x 7.6″ x 1.43″)
    • Weight – 1.1 kg (2.4 lbs.)
    • Keyboard Tray – compatible with Hope Industrial Keyboard Trays for attachment to Universal Mount Monitors.
  • Compliances and Certifications
    • Electrical – cURus, CE, UKCA, FCC Class A
    • Environmental – WEEE
NEMA 4/4X Benchtop Keyboards with Pointing Device
Enclosure MaterialKeypad/Pointer TypePart NumberPrice
Stainless SteelFull-Travel with TouchpadKB-R3-BCH-SS4-4X-USB$965£755€895895 €KB-R3-BCH-SS4-4X-USB
Full-Travel with Button PointerKB-R2-BCH-SS4-4X-USB$985£770€915915 €KB-R2-BCH-SS4-4X-USB
Short-Travel with TouchpadKB-M2-BCH-SS4-4X-USB$1,035£810€960960 €KB-M2-BCH-SS4-4X-USB
Black Powder-Coated Carbon SteelFull-Travel with TouchpadKB-R3-BCH-BLK-4-USB$840£660€780780 €KB-R3-BCH-BLK-4-USB
Full-Travel with Button PointerKB-R2-BCH-BLK-4-USB$860£675€800800 €KB-R2-BCH-BLK-4-USB
Short-Travel with TouchpadKB-M2-BCH-BLK-4-USB$865£680€805805 €KB-M2-BCH-BLK-4-USB
NEMA 2 Standard Benchtop Keyboard with Touchpad
Part NumberPrice
KB-PL-BCH-BLK-USB$340£270€315315 €KB-PL-BCH-BLK-USB

Related Products

Product - Keyboards - Mouse

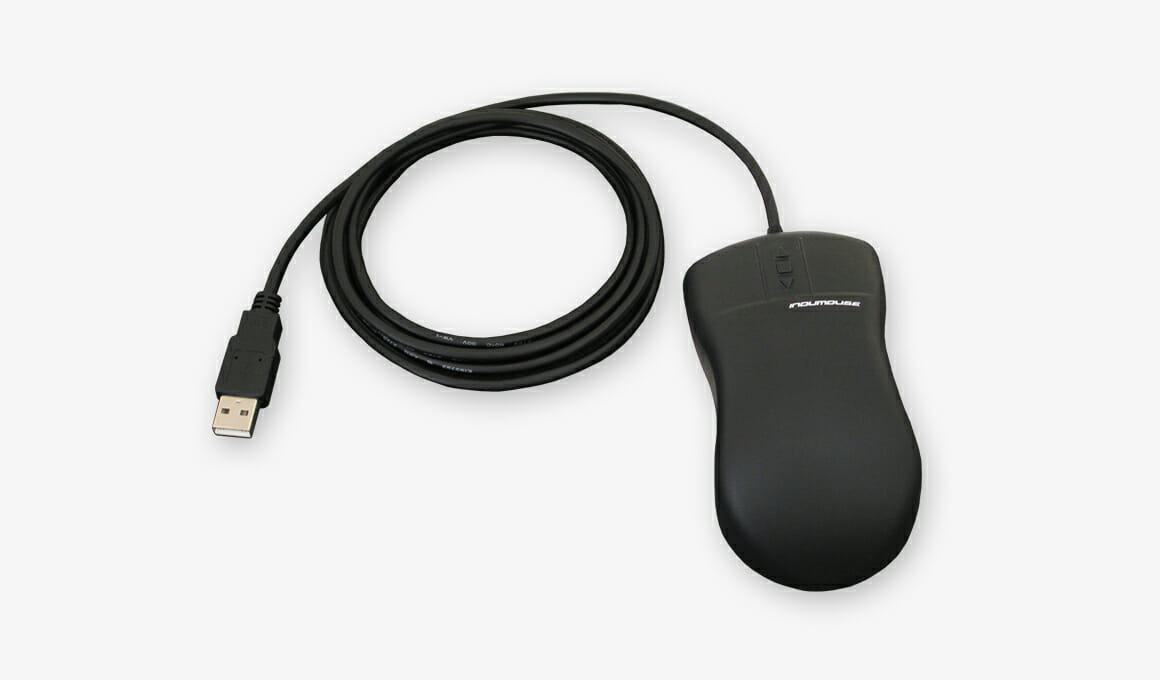

Industrial NEMA 4X Sealed Optical Mouse

Product - Keyboards - Tray

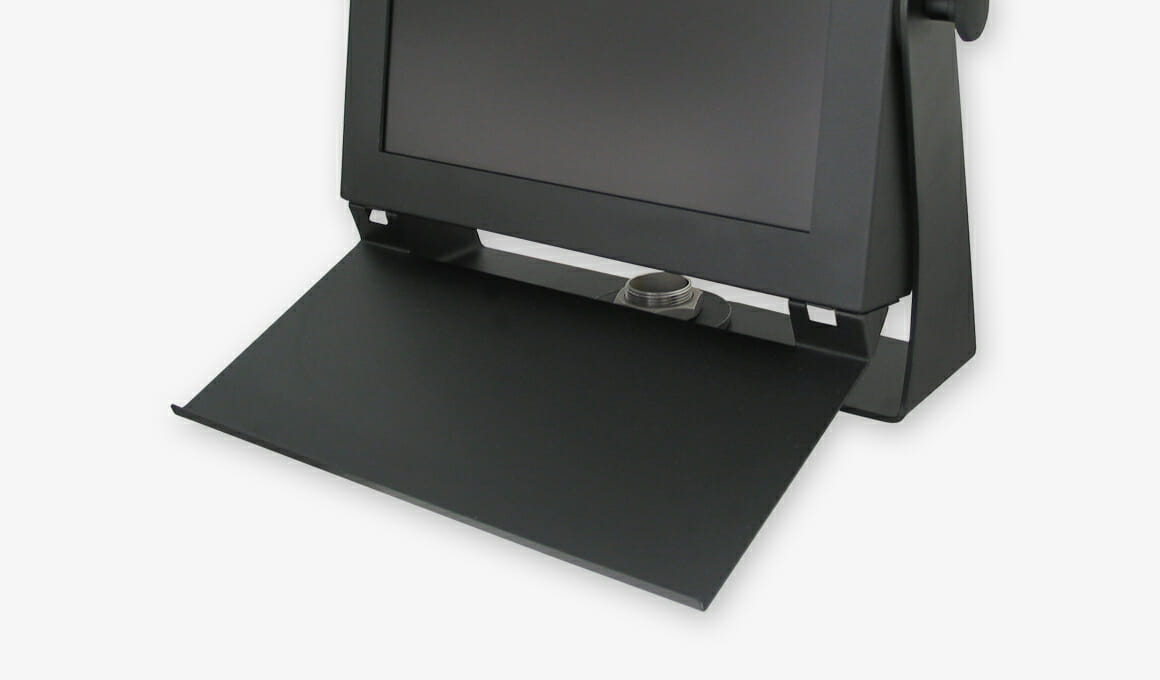

Keyboard Mounting Tray
